Description

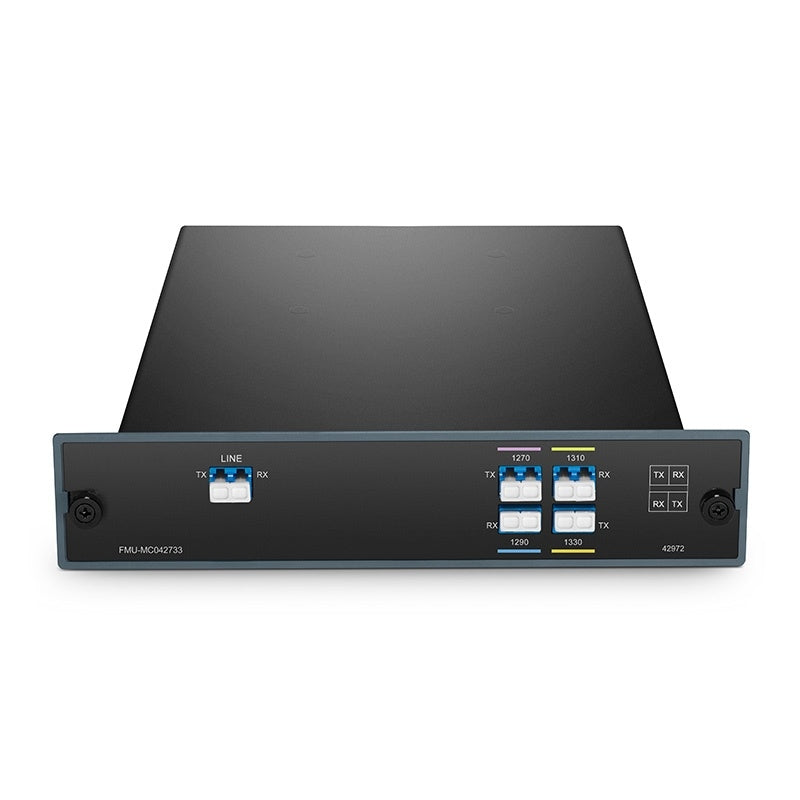

4 Channels CWDM Mux Demux, 1270-1330nm, 1.0dB Typical IL, LC/UPC, Dual Fiber, FMU Plug-in Module
The 4CH Mux Demux is a cost-effective, flexible, and suitable for short-distance transmission passive CWDM device based on Free Space technology. This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T G.694.2, it maximizes the capacity of the C-band range.
In conjunction with 3C CWDM optical transceivers and OADM, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.
SPECIFICATION
| Wavelength | 4 Channels 1270-1330nm |
|---|---|
| Channel Passband | ± 6.5nm |
| Passband Ripple | ≤ 0.5dB |
| Passband Ripple | ≥ 45dB |
| Polarization Dependent Loss | ≤ 0.3dB |
|
Channel Isolation |
Adjacent ≥ 30dB Non-adjacent ≥ 40dB |
| Power Handling | ≤ 500mW |
| Channel Spacing |
20nm
|
| Insertion Loss | ≤ 1.3dB, 1.0dB Typical |
|---|---|
| Technology | Free Space |
| Directivity | ≥ 50dB |
| Polarization Mode Dispersion |
≤ 0.1ps
|
| Temperature |
Operating -40 to 85°C (-40 to 185°F) Storage -40 to 85°C (-40 to 185°F) |
| Dimensions (HxWxD) |
1.73"x8.35"x10.04" (44x212x255mm)
|
