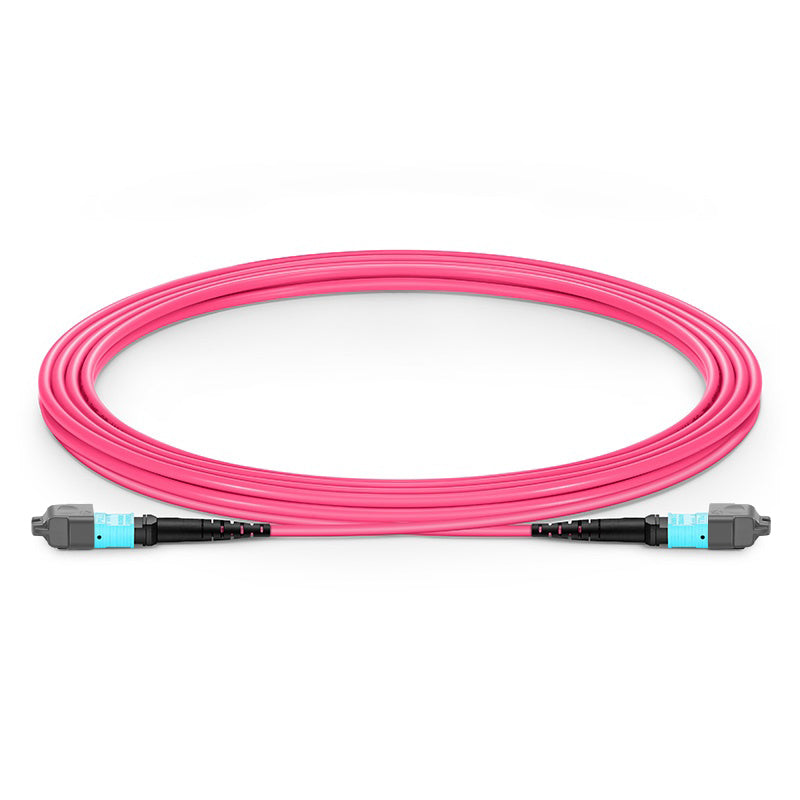

3m (10ft) MTP-12 (Male) to MTP-12 (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, Plenum (OFNP), Magenta

Length:: 3m(10ft)
Sale price$53.20


MTP Male to MTP Female OM4 Multimode Trunk Cable

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. Due to the MTP-12 also supporting MTP-8 fiber systems, it is also ideal for 8-fiber parallel multimode optical transceivers applications, such as 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.


Connector A US Conec MTP Male (Pinned)
Fiber Mode OM4 50/125μm
Glass Fiber Corning ClearCurve®
40/100G Ethernet Distance 150m at 850nm
Polish Type UPC to UPC
Insertion Loss 0.35dB Max (0.15dB Typ.)
Attenuation at 850nm ≤2.3dB/km
Jacket OD 3.0mm
Installation Tensile Load 66N


Operating Temperature -10 to 70°C (14 to 158℉)
Connector B US Conec MTP Female (Pinless)
Wavelength 850/1300nm
10G Ethernet Distance 400m at 850nm
RoHS Compliancy Status Compliant
Minimum Bend Radius 7.5mm
Return Loss ≥20dB
Attenuation at 1300nm ≤0.6dB/km
Cable Jacket Plenum (OFNP)
Tensile Strength (Long/Short Term) 80/240N
Storage Temperature -40 to 85°C (-40 to 185℉)
