Description

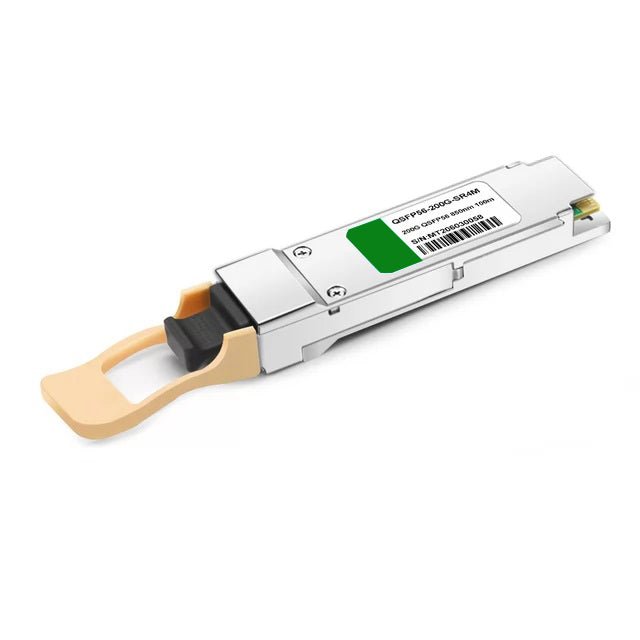

Mellanox MMA1T00-HS Compatible 200G Infiniband HDR QSFP56 SR4 PAM4 Optical Transceiver Module (850nm MTP/MPO-12 OM3/OM4 100m with FEC DDM)
SPECIFICATION
| FORM FACTOR | QSFP56 |
|---|---|
| CONNECTOR / POLISH | MTP/MPO-12 |
| INTERFACE | MMF |
| TYPE | SR4 |
| DISTANCE | 70m on OM3/100m on OM4 |
| TEMPERATURE RANGE | 0°C - 70°C |
| LANE COUNT | 4x (Tx/Rx) |
| BANDWIDTH | 212.5 Gbit/s |
| BANDWITH PER LANE | 53.13 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|---|---|
| POWER CONSUMPTION | 5W |
| CDR | TX and RX |
| SGMII | No |
| INBUILT FEC | No |
| POWERBUDGET (DB) | |
| TRANSMIT MIN/MAX PER LANE | -6.5~+4.0dBm |
| RECEIVER PER LANE | < -8.2dBm |
| WAVELENGTH (TYPICAL) | 850nm |
| WAVELENGTH TX (RANGE) | |
|---|---|
| WAVELENGTH RX (TYPICAL) | |
| LASER | 850nm VCSEL |
| RECEIVER TYPE | PIN |
| MODULATION | PAM4 |
| TRANSMIT AND DISPERSION PENALTY | |
| EXTINCTION RATIO | |
| SUPPORTED PROTOCOLS |
200G InfiniBand HDR,200G Ethernet |
TESTING
