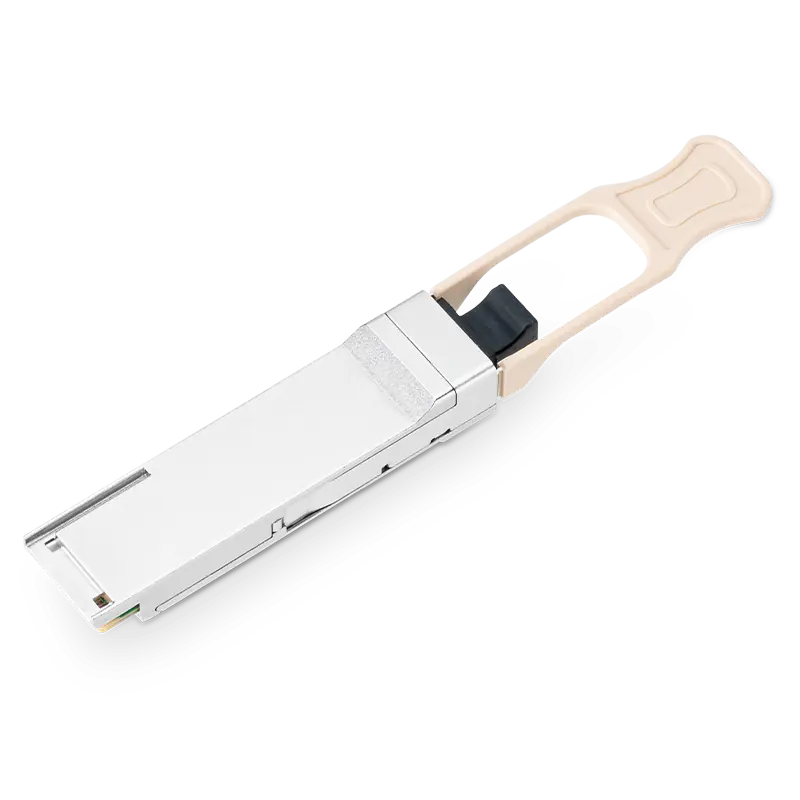

200G QSFP56 SR4 WITH DUAL CDR100 m, 4x λ850 nm, MTP/MPO-8/12, Multimode
- Universal QSFP56 Transceiver
- Use 3CBOX in combination with 3CBOX to configure to almost any vendor
- For 200GBASE-SR4 Ethernet links
- Integrated Clock-Data-Recovery (CDR)
- PAM4 modulated signal
- With QSFP-MSA memory map
- Supported Data Rates: 212.5 Gbit/s (4x 53.13 Gbit/s)
- Up to 100 m via Multimode OM4
-
MTP/MPO-8/12 Connector
SPECIFICATION
| FORM FACTOR | QSFP56 |
|---|---|
| CONNECTOR / POLISH | MTP/MPO-8/12 PC |
| INTERFACE | Multimode |
| TYPE | SR4 |
| DISTANCE | 100m |
| TEMPERATURE RANGE | 0°C - 70°C |
| LANE COUNT | 4 x (Tx/Rx) |
| BANDWIDTH | 212.5 Gbit/s |
| BANDWITH PER LANE | 53.13 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|---|---|
| POWER CONSUMPTION | 5 W |
| CDR | TX and RX |
| SGMII | No |
| INBUILT FEC | No |
| POWERBUDGET (DB) | 3.9 dB |
| TRANSMIT MIN/MAX PER LANE | -4.5 dBm / 3 dBm |
| RECEIVER MIN/MAX PER LANE | -8.4 dBm / 4 dBm (overload) |
| WAVELENGTH TX (TYPICAL) | 4x 850 nm |
| WAVELENGTH TX (RANGE) | 840 - 860 n |
|---|---|
| WAVELENGTH RX (TYPICAL) | 4x 850 nm |
| LASER | VCSEL |
| RECEIVER TYPE | PIN |
| MODULATION | PAM4 |
| TRANSMIT AND DISPERSION PENALTY | 4.5 dB |
| EXTINCTION RATIO | 3 dB |
| SUPPORTED PROTOCOLS | 200G Infiniband HDR, 200G Ethernet |
