Description

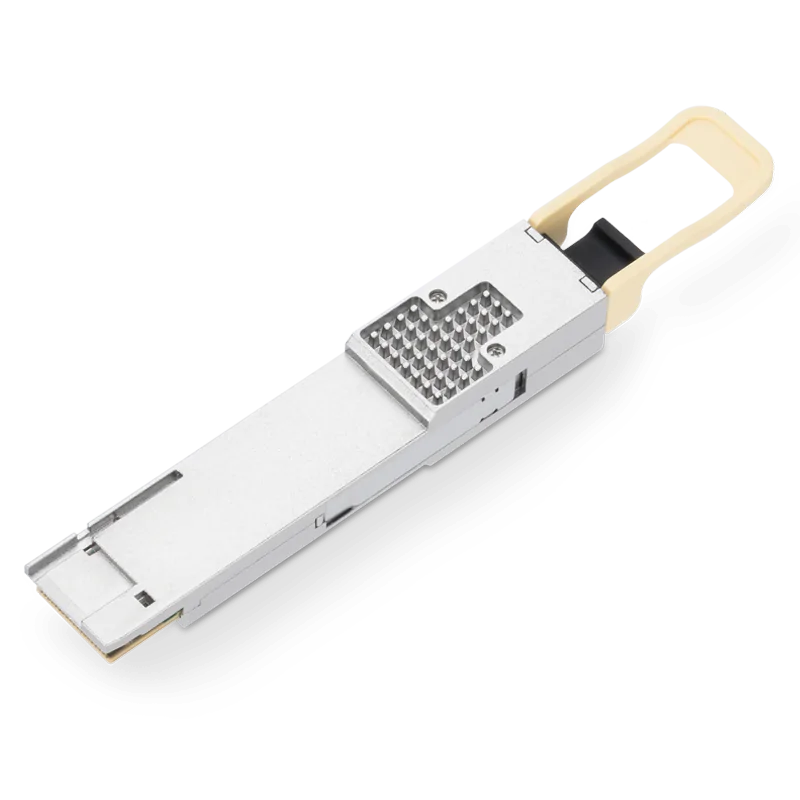

200GBASE- 2SR4 200GBASE-NRZ 850nm 100m MPO/MTP-24 UPC Optical Transceiver Module for MMF
- Universal QSFP-DD Transceiver
- Use 3CBOX in combination with 3CBOX to configure to almost any vendor
- For 200GBASE-SR4 Ethernet links
- Integrated Clock-Data-Recovery (CDR)
- PAM4 modulated signal
-
With CMIS Memory Map
- Up to 100 m via Multimode OM4
- 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
SPECIFICATION
| FORM FACTOR | QSFP-DD |
|---|---|
| CONNECTOR / POLISH | MPO/MTP-24 UPC |
| INTERFACE | Multimode |
| TYPE | 200GBASE- 2SR4 |
| DISTANCE | 100m |
| TEMPERATURE RANGE | 0°C - 70°C |
| LANE COUNT | 8x25.78Gb/s NRZ |
| BANDWIDTH | 212.5 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|---|---|
| POWER CONSUMPTION | 7 W |
| CDR | TX and RX |
| SGMII | No |
| INBUILT FEC | No |
| POWERBUDGET (DB) | |
| TRANSMIT MIN/MAX PER LANE | |
| RECEIVER MIN/MAX PER LANE | |
| WAVELENGTH TX (TYPICAL) |
| WAVELENGTH TX (RANGE) | |
|---|---|
| WAVELENGTH RX (TYPICAL) | |
| LASER | VCSEL |
| RECEIVER TYPE | PIN |
| MODULATION | PAM4 |
| TRANSMIT AND DISPERSION PENALTY | |
| EXTINCTION RATIO | 4 |
| SUPPORTED PROTOCOLS | 200G Ethernet |
TESTING
