Description

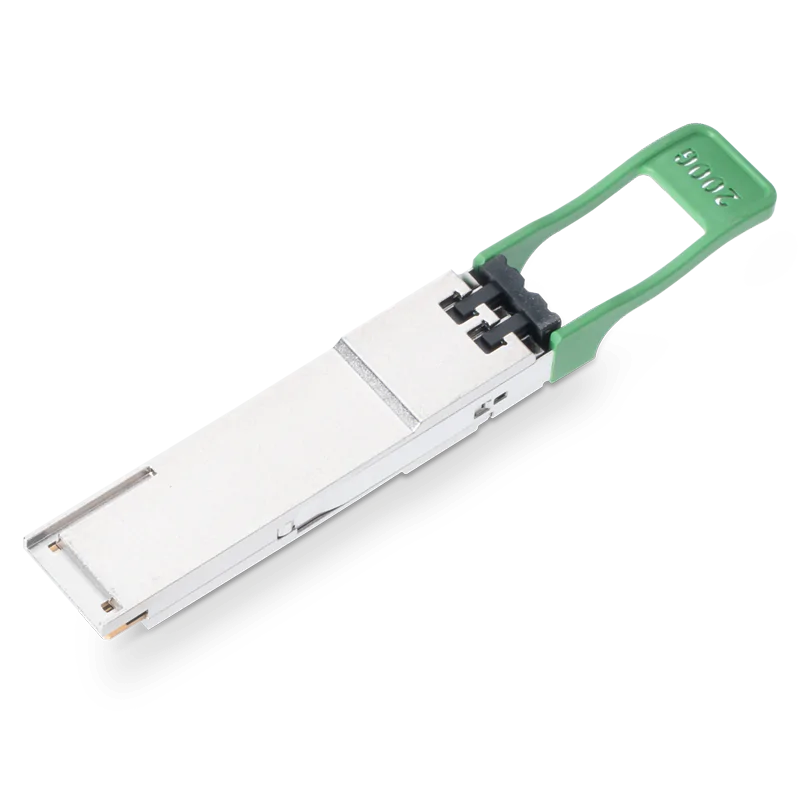

200G QSFP56 FR4 WITH DUAL CDR2 km, λ1271-1331 nm, LC-Duplex, Singlemode
- Universal QSFP56 Transceiver
- Use 3CBOX in combination with 3CBOX to configure to almost any vendor
- For 200GBASE-FR4 Ethernet links
- Integrated Clock-Data-Recovery (CDR)
- PAM4 modulated signal
- Supported Data Rates: 212.5 Gbit/s
- Up to 2 km via Singlemode OS2
- LC-Duplex Connector
SPECIFICATION
| FORM FACTOR | QSFP56 |
|---|---|
| CONNECTOR / POLISH | LC-Duplex PC |
| INTERFACE | Singlemode |
| TYPE | FR4 |
| DISTANCE | 2 km |
| TEMPERATURE RANGE | 10°C - 60°C |
| LANE COUNT | 4 x (Tx/Rx) |
| BANDWIDTH | 212.5 Gbit/s |
| BANDWITH PER LANE | 53.13 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|---|---|
| POWER CONSUMPTION | 6.5 W |
| CDR | TX and RX |
| SGMII | No |
| INBUILT FEC | No |
| POWERBUDGET (DB) | 4 dB |
| TRANSMIT MIN/MAX PER LANE | -4.2 dBm / 4.7 dBm |
| RECEIVER MIN/MAX PER LANE | -8.2 dBm / 4.7 dBm (overload) |
| WAVELENGTH TX (TYPICAL) | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| WAVELENGTH TX (RANGE) | |
|---|---|
| WAVELENGTH RX (TYPICAL) | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| LASER | EML |
| RECEIVER TYPE | PIN |
| MODULATION | PAM4 |
| TRANSMIT AND DISPERSION PENALTY | 3.3 dB |
| EXTINCTION RATIO | 3.5 dB |
| SUPPORTED PROTOCOLS | 200G Ethernet |
