Description

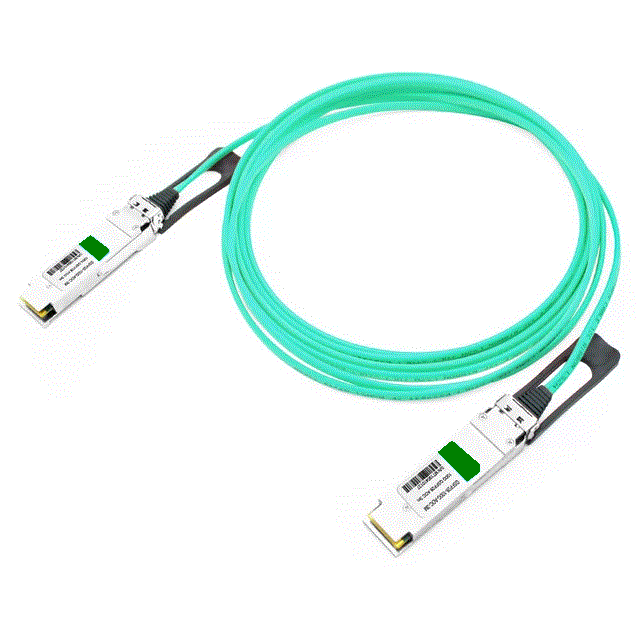

200G QSFP56 AOC WITH CDR (TX / RX)Multimode Fiber, 1 - 30 m
- Universal Active Optical Cable (AOC) with CDR (TX / RX), 1 - 30 m
- Use 3CBOX to configure to almost any vendor
- QSFP56 to QSFP56
- PAM4 modulated signal
- Supported Datarate 212.52 Gbit/s
- Modules are permanently attached to each end
- Low power consumption < 10 W (less than 5 W per terminal)
- Connect different host systems by configuring each side individually
-
Easy cable routing thanks to small diameter (Ø 2 mm) and bend radius
SPECIFICATION
| TYPE | AOC |
|---|---|
| FORM FACTOR | QSFP56 to QSFP56 |
| INTERFACE | Active Optical Cable |
| CABLE TYPE | Optical Fiber |
| TEMPERATURE RANGE | 0°C - 70°C |
| BANDWIDTH | 212.52 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | implemented |
| CDR | TX and RX |
| MODULATION |
PAM4 |
| SUPPORTED PROTOCOLS | 200G Infiniband HDR, 200G Ethernet |
| POWER CONSUMPTION | 10 W (5 W + 5 W) |
