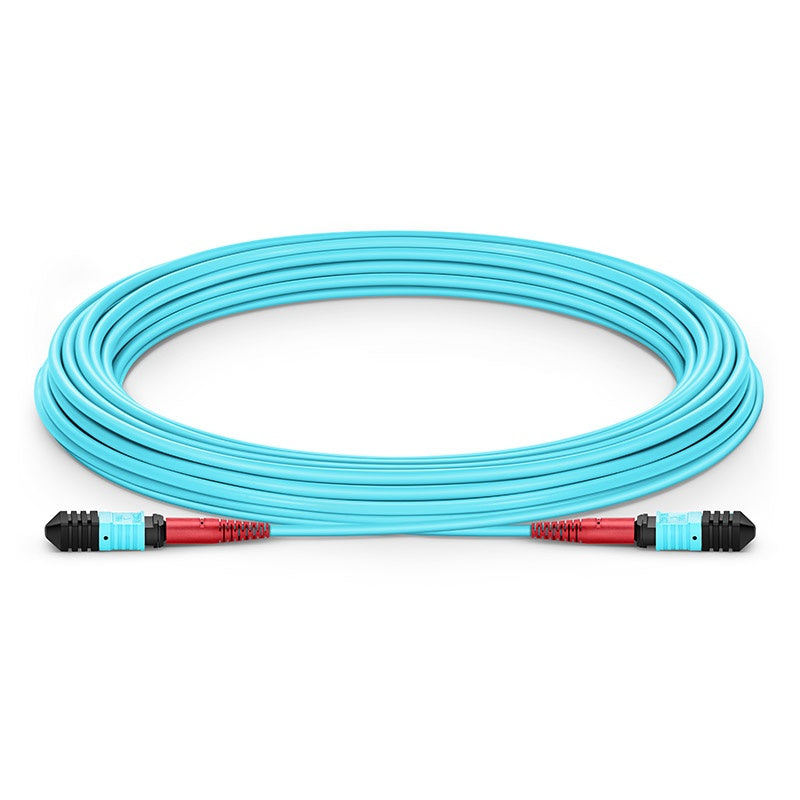

1m (3ft) Senko MPO-24 (Female) to MPO-24 (Female) OM3 Multimode Elite Trunk Cable, 24 Fibers, Type A, LSZH, Aqua


Length:: 1m(3ft)
Price:
Sale price$76.30

Description

MTPO Female to MPO Female OM3 Multimode Trunk Cable

MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers where need space saving and reduce cable management troubles. In addition, with Senko MPO Plus Connector and Corning ClearCurve Fiber, the high performance of connection is assured.

Please note: MPO Plus is a registered trademark of Senko Advanced Components, Inc. 2013-2020 © All Rights Reserved. Senko MPO Plus connectors are fully compliant with the MPO standards, which are enhanced in the areas of mechanical durability, product features and most importantly the optical performance of the MT ferrule itself.

SPECIFICATION

Connector A Senko MPO Plus®
Fiber Mode OM3 50/125μm
40/100G Ethernet Distance
100m at 850nm
Glass Fiber Corning ClearCurve®
Insertion Loss
0.35dB
Attenuation at 850nm ≤2.3dB/km
Jacket OD 3.0mm
Installation Tensile Load 66N
Operating Temperature -10 to +70°C (14 to 158℉)
Polish Type UPC to UPC





RoHS Compliancy Status Compliant
Wavelength
850/1300nm
10G Ethernet Distance 300m at 850nm
Minimum Bend Radius 7.5mm
Return Loss ≥20dB
Attenuation at 1300nm ≤0.6dB/km
Cable Jacket LSZH
TENSILE STRENGTH (LONG/SHORT TERM) 80/240N
STORAGE TEMPERATURE -40 to 85°C (-40 to 185℉)
