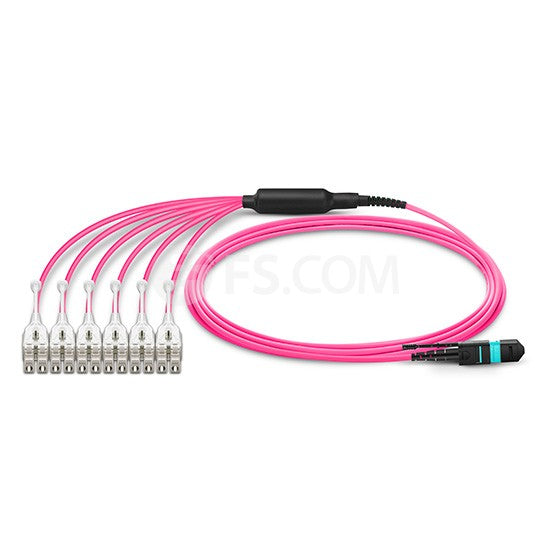

MTP-HD to LC-HD (High Density ) fiber patch cables allow high-density connections between network equipment in telecommunication rooms. The Push/Pull tab connector can be removed using a simple pull tab, eliminateing the need for finger access to the MTP® connectors and release mechanism in 10/40/100G dense applications.
Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
| Connector A | US Conec MTP Female Push Pull Tab (Pinless) |
|---|---|
| Fiber Mode | OM4 50/125μm |
| 40/100G Ethernet Distance |
150m at 850nm |
| Glass Fiber | Corning ClearCurve |
| MTP Connector IL | 0.35dB Max (0.15dB Typ.) |
| MTP Connector RL | ≥20dB |
| Cable Jacket | LSZH |
| Jacket OD | 3.0mm |
| Installation Tensile Load | 66N |
|---|---|
| Storage Temperature | -40 to +85°C (-40 to 185℉) |
| Connector B | LC UPC Duplex |
| Wavelength | 850/1300nm |
| 10G Ethernet Distance |
400m at 850nm |
| RoHS Compliancy Status | Compliant |
| LC Connector IL |
≤0.15dB
|
| LC Connector RL | ≥30dB |
|---|---|
| Attenuation at 1300nm | ≤0.6dB/km |
| Fiber Count | 12 Fibers |
| Fan-Out Diameter |
2.0mm |
| Tensile Strength (Long/Short Term) | 80N/240N |
|---|---|
| Operating Temperature | -10 to +70°C (14 to 158℉) |
