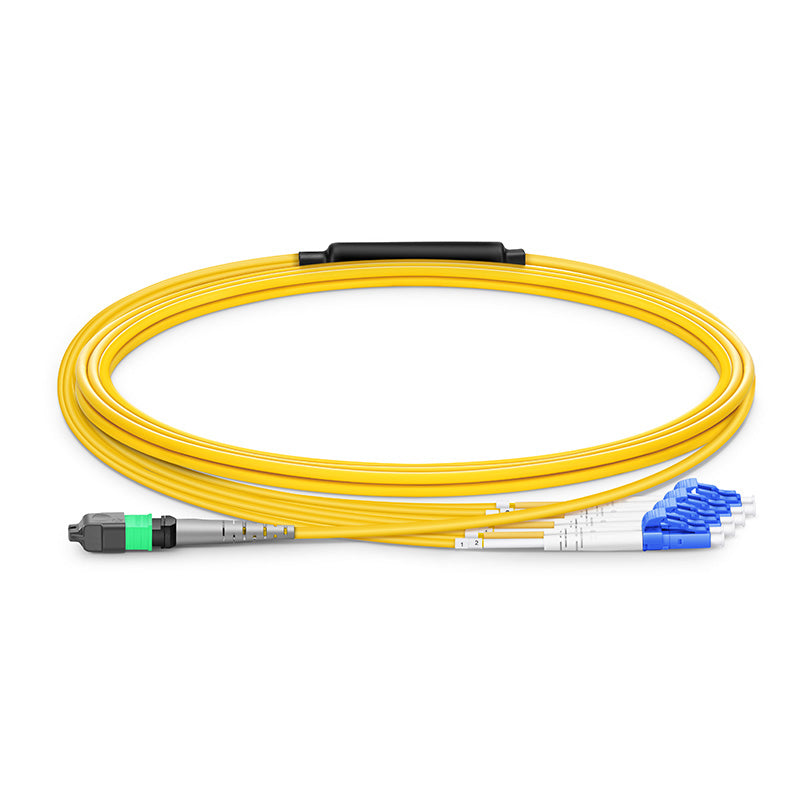

1m (3ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (OFNP) OS2 9/125 Single Mode Elite Breakout Cable, Yellow

Length:: 1m(3ft)
Sale price$39.90


MTP Female to LC UPC Duplex OS2 Single Mode Breakout Cable

MTP breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP® connectors and Corning SMF-28® ultra optical fiber, it is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications.

Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.


Fiber Connector US Conec MTP® Female (Pinless)
Fiber Mode OS2 9/125μm
Glass Fiber Corning SMF-28® Ultra
MTP Connector IL 0.35dB Max (0.15dB Typ.)
MTP Connector RL ≥60dB
Attenuation at 1310nm ≤0.32dB/km
Cable Jacket
Plenum (OFNP)
Jacket OD 3.0mm
Installation Tensile Load 66N


Storage Temperature -40 to +85°C (-40 to 185℉)
Connector B LC UPC Duplex
Wavelength 1310/1550nm
Fiber Grade G.657.A1 (Compatible with G.652.D)
LC Connector IL
LC Connector RL ≥50dB
Attenuation at 1550nm
Fiber Count 8 Fibers
Fan-Out Diameter 2.0mm
Tensile Strength (Long/Short Term) 80/240N
Operating Temperature
-10 to +70°C (14 to 158℉)
