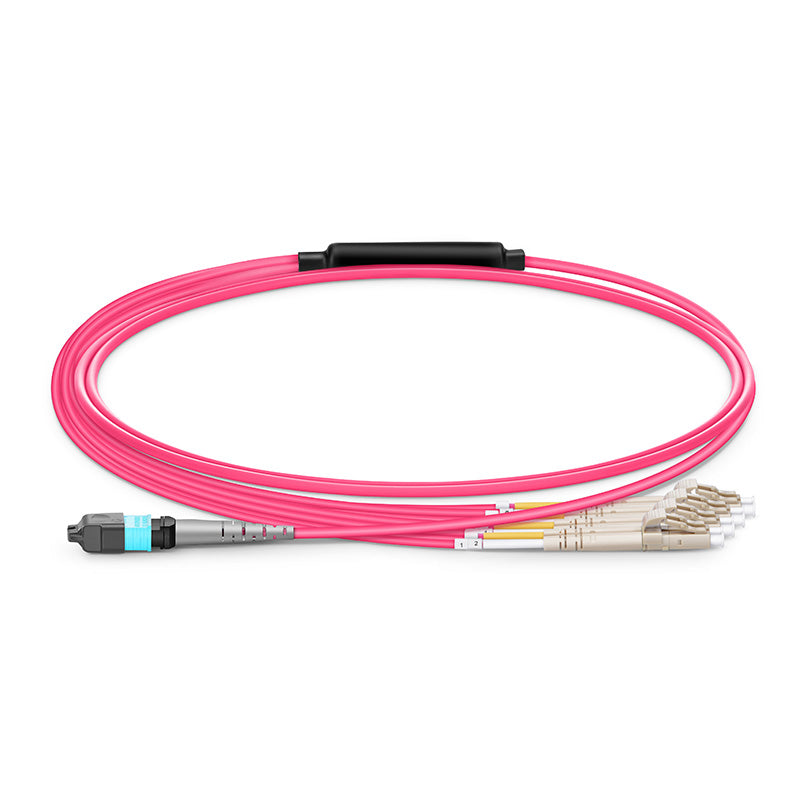

1m (3ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (OFNP) OM4 50/125 Multimode Elite Breakout Cable, Magenta


Length:: 1m(3ft)
Price:
Sale price$30.10

Description

MTP Female to LC UPC Duplex OM4 Multimode Breakout Cable

MTP breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning Clearcurve fiber, it is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

SPECIFICATION

Connector A US Conec MTP® Female (Pinless)
Fiber Mode OM4 50/125μm
40/100G Ethernet Distance
150m at 850nm
Glass Fiber Corning ClearCurve®
MTP Connector IL 0.35dB Max (0.15dB Typ.)
MTP Connector RL ≥20dB
Attenuation at 850nm ≤2.3dB/km
Cable Jacket Plenum (OFNP)
Jacket OD 3.0mm





Installation Tensile Load 66N
Storage Temperature -40 to +85°C (-40 to 185℉)
Connector B LC UPC Duplex
Wavelength 850/1300nm
10G Ethernet Distance
400m at 850nm
RoHS Compliancy Status Compliant
LC Connector IL
≤0.2dB
LC Connector RL ≥30dB
Attenuation at 1300nm ≤0.6dB/km
Fiber Count 8 Fibers
Fan-Out Diameter
2.0mm
Tensile Strength (Long/Short Term) 80/240N
Operating Temperature -10 to +70°C (14 to 158℉)
