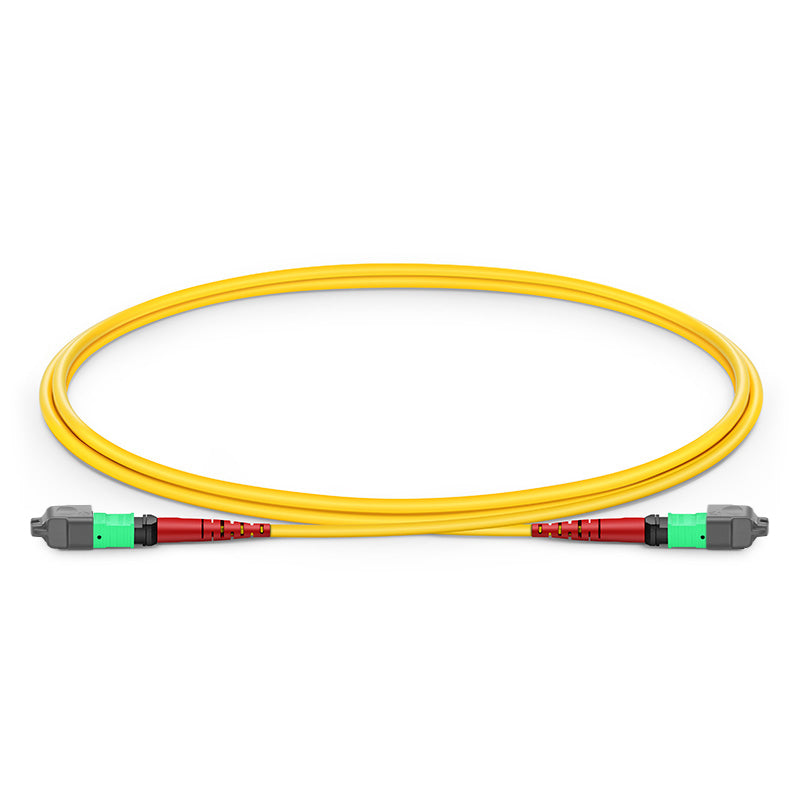

1m (3ft) MTP- 24 (Female) to MTP- 24 (Female) OS2 Single Mode Elite Trunk Cable, 24 Fibers, Type A, Plenum (OFNP), Yellow


Length:: 1m(3ft)
Price:
Sale price$146.30

Description

MTP Female to MTP Female OS2 Single Mode Trunk Cable

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP Connectors and Corning SMF-28 ultra optical fiber, it is optimized for CPAK 10x10GBASE-LR optics direct connection and high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

SPECIFICATION

Connector Type
US Conec MTP®-MTP Female (Pinless)
Fiber Mode OS2 9/125μm
Glass Fiber Corning SMF-28® Ultra
Polish Type APC to APC
Insertion Loss
0.35dB Max (0.15dB Typ.)
Attenuation at 1310nm ≤0.32dB/km
Jacket OD 3.0mm
Installation Tensile Load 66N
Operating Temperature -10 to +70°C (14 to 158℉)



Connector B US Conec MTP® Female (Pinless)
Wavelength 1310/1550nm
Fiber Grade G.657.A1 (Compatible with G.652.D)
Minimum Bend Radius 10 mm
Return Loss ≥60dB
Attenuation at 1550nm ≤0.18dB/km
Cable Jacket Plenum (OFNP)
TENSILE STRENGTH (LONG/SHORT TERM) 80/240N
STORAGE TEMPERATURE -40 to 85°C (-40 to 185℉)
