1m (3ft) MTP- 24 (Female) to MTP- 24 (Female) OM4 Multimode Elite Trunk Cable, 24 Fibers, Type A, Plenum (OFNP), Magenta

Length:: 1m(3ft)
Sale price$83.30

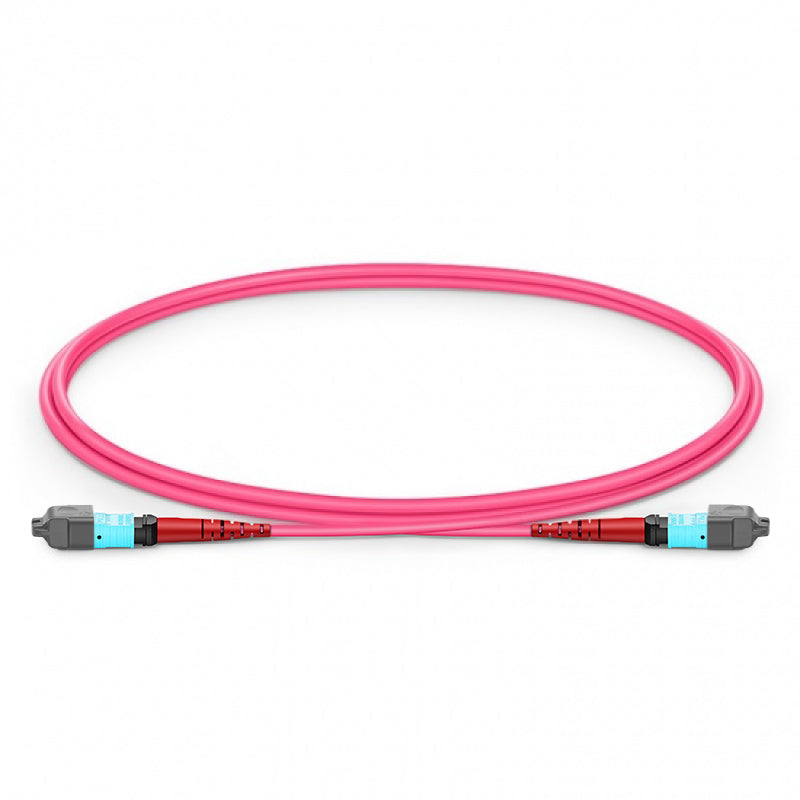

MTP Female to MTP Female OM4 Multimode Trunk Cable

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP Connectors and Corning ClearCurve fiber, it is optimized for 100GBASE-SR10 CXP/CFP/CPAK optics direct connection and high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.


Connector A US Conec MTP Female (Pinless)
Fiber Mode OM4 50/125μm
Glass Fiber Corning ClearCurve®
Polish Type UPC to UPC
Insertion Loss 0.35dB Max (0.15dB Typ.)
Attenuation at 850nm ≤2.3dB/km
Jacket OD 3.0mm
Installation Tensile Load 66N


40/100G Ethernet Distance
150m at 850nm
Return Loss ≥20dB
Attenuation at 1300nm ≤0.6dB/km
Tensile Strength (Long/Short Term) 80/240N
Storage Temperature -40 to +85°C (-40 to 185℉)
Cable Jacket Plenum (OFNP)
