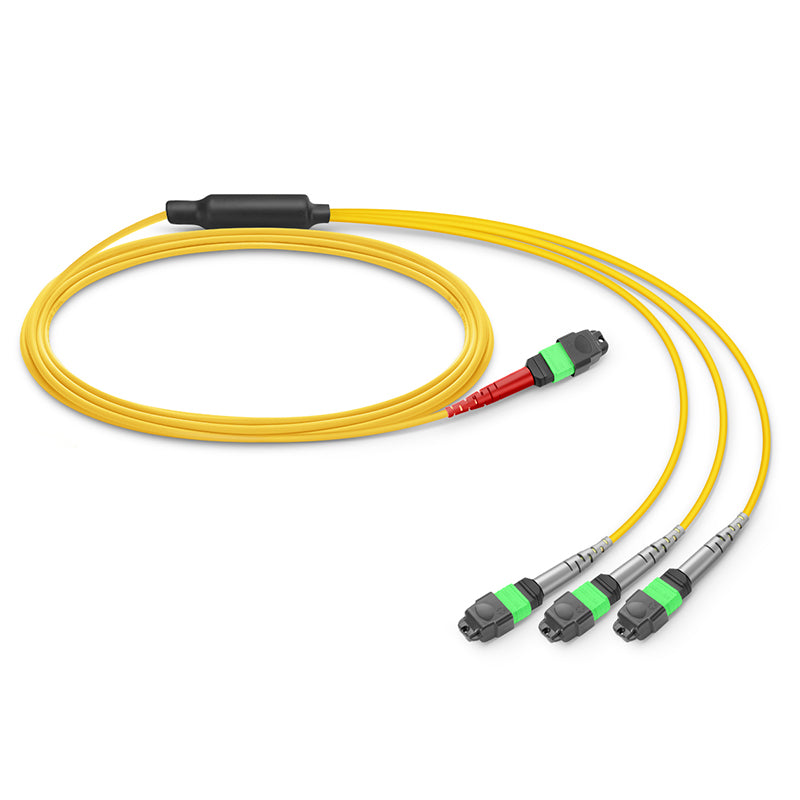

1m (3ft) MTP-24 (Female) to 3 x MTP-8 (Female) OS2 Single Mode Conversion Harness Cable, 24 Fibers, Type B, Plenum (OFNP), Yellow

Length:: 1m(3ft)
Sale price$156.10


24 Fibers MTP to MTP Interconnect Conversion Harness Cable

MTP conversion cable is designed to provide a more flexible multi-fiber cabling system based on MTP products. Unlike MTP harness cable, MTP® conversion cables are terminated with MTP connectors on both ends and can provide more possibilities for the existing 24-fiber cabling system.

The 40/100G MTP conversion cables eliminate the wasted fibers in current 40G transmission and upcoming 100G transmission. Compared to purchase and install separate conversion cassettes, using MTP conversion cables is a more cost-effective and lower-loss option.


Fiber Connector US Conec MTP
Fiber Mode OS2 9/125μm
Glass Fiber Corning SMF-28®
Insertion Loss
0.35dB Typ.
Attenuation at 850nm ≤0.32dB/km
Cable Jacket Plenum (OFNP)
Jacket OD 3.0mm
Installation Tensile Load 66N
Operating Temperature -10 to 70°C (14 to 158℉)


Gender Female
Wavelength 1310/1550nm
Polish Type APC to APC
Return Los ≥60dB
Attenuation at 1300nm
Minimum Bend Radius
Breakout Length
Tensile Strength (Long/Short Term) 80/240N
Storage Temperature
-40 to 85°C (-40 to 185℉)
