Description

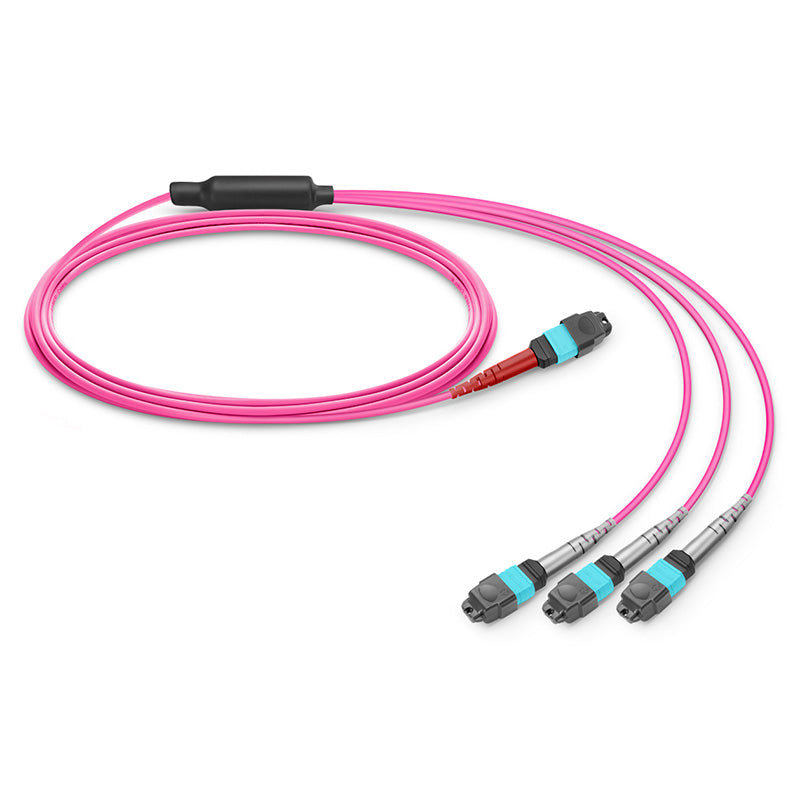

24 Fibers MTP to MTP Interconnect Conversion Harness Cable
MTP conversion cable is designed to provide a more flexible multi-fiber cabling system based on MTP products. Unlike MTP harness cable, MTP conversion cables are terminated with MTP® connectors on both ends and can provide more possibilities for the existing 24-fiber cabling system.
The 40/100G MTP conversion cables eliminate the wasted fibers in current 40G transmission and upcoming 100G transmission. Compared to purchase and install separate conversion cassettes, using MTP conversion cables is a more cost-effective and lower-loss option.
SPECIFICATION
| Fiber Connector | US Conec MTP® |
|---|---|
| Fiber Mode | OM4 50/125μm |
| Glass Fiber | Corning ClearCurve® |
| Insertion Loss |
0.35dB Typ. |
| Attenuation at 850nm | ≤2.3dB/km |
| Cable Jacket | Plenum (OFNP) |
| Jacket OD | 3.0mm |
| Installation Tensile Load | 66N |
| Operating Temperature | -10 to 70°C (14 to 158℉) |
| Gender | Female |
|---|---|
| Wavelength | 850/1300nm |
| Polish Type | UPC to UPC |
| Return Los | ≥20dB |
| Attenuation at 1300nm |
≤0.6dB/km |
| Minimum Bend Radius |
7.5mm |
| Breakout Length |
0.5m
|
| Tensile Strength (Long/Short Term) | 80/240N |
|---|---|
| Storage Temperature |
-40 to 85°C (-40 to 185℉) |
