Description

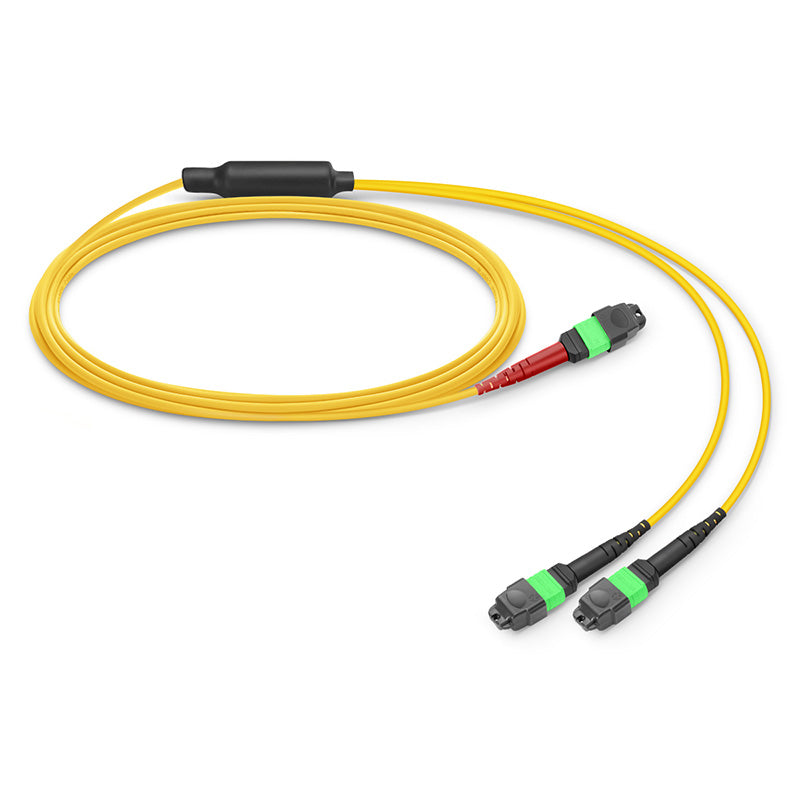

24 Fibers MTP to MTP Interconnect Conversion Harness Cable
MTP conversion cable is designed to provide a more flexible multi-fiber cabling system based on MTP products. Unlike MTP harness cable, MTP conversion cables are terminated with MTP connectors on both ends and can provide more possibilities for the existing 24-fiber cabling system.
The 40/100G MTP conversion cables eliminate the wasted fibers in current 40G transmission and upcoming 100G transmission. Compared to purchase and install separate conversion cassettes, using MTP® conversion cables is a more cost-effective and lower-loss option.
SPECIFICATION
| Fiber Connector | US Conec MTP |
|---|---|
| Fiber Mode | OS2 9/125μm |
| Glass Fiber | Corning SMF-28® |
| Insertion Loss |
0.35dB Typ. |
| Attenuation at 850nm | ≤0.32dB/km |
| Cable Jacket | Plenum (OFNP) |
| Jacket OD | 3.0mm |
| Installation Tensile Load | 66N |
| Operating Temperature | -10 to 70°C (14 to 158℉) |
| Gender | Female |
|---|---|
| Wavelength | 1310/1550nm |
| Polish Type | APC to APC |
| Return Los | ≥60dB |
| Attenuation at 1300nm |
≤0.18dB/km |
| Minimum Bend Radius |
10mm |
| Breakout Length |
0.5m
|
| Tensile Strength (Long/Short Term) | 80/240N |
|---|---|
| Storage Temperature |
-40 to 85°C (-40 to 185℉) |
