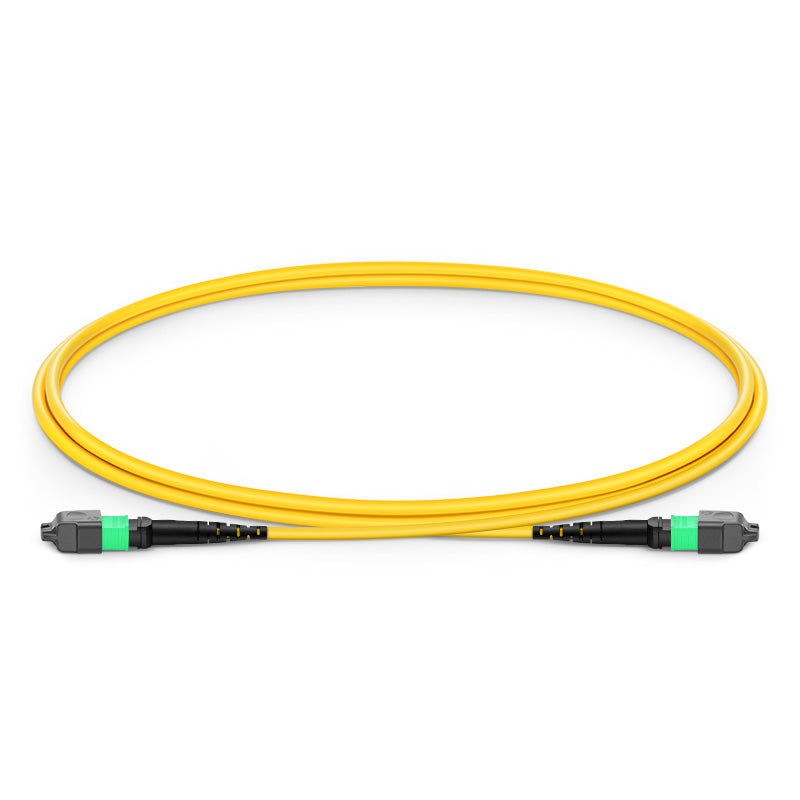

1m (3ft) MTP-16 APC (Female) to MTP-16 APC (Female) OS2 Single Mode Standard IL Trunk Cable, 16 Fibers, Plenum (OFNP), Yellow, for 800G Network Connection
Roll over image to zoom in Click on image to zoom
1m (3ft) MTP-16 APC (Female) to MTP-16 APC (Female) OS2 Single Mode Standard IL Trunk Cable, 16 Fibers, Plenum (OFNP), Yellow, for 800G Network Connection

1m (3ft) MTP-16 APC (Female) to MTP-16 APC (Female) OS2 Single Mode Standard IL Trunk Cable, 16 Fibers, Plenum (OFNP), Yellow, for 800G Network Connection

3Coptics
Length:: 1m(3ft)
Price:
$178.50

Description

16 Fibers MTP Female to MTP Female OS2 9/125 Single Mode Trunk Cable

16 Fibers MTP trunk cable is designed for 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 optics direct connection and supporting 800G transmission for Hyperscale Data Center. With US Conec MTP connectors and Corning SMF-28 ultra fiber, it is optimized for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

SPECIFICATION

Connector A US Conec MTP® Female (Pinless)
Fiber Mode OS2 9/125μm
Glass Fiber Corning SMF-28® Ultra
Polish Type
 APC to APC
Insertion Loss
 0.75dB Max (0.35dB Typ.)
Attenuation at 1310nm ≤0.32dB/km
Cable Diameter 3.0mm
Installation Tensile Load 66N
Operating Temperature -10 to +70°C (14 to 158℉)



Connector B US Conec MTP Female (Pinless)
Wavelength 1310/1550nm
Fiber Grade G.657.A1 (Compatible with G.652.D)
Minimum Bend Radius 10 mm
Return Loss ≥60dB
Attenuation at 1550nm ≤0.18dB/km
Cable Jacket Plenum (OFNP)
TENSILE STRENGTH (LONG/SHORT TERM) 80/240N
STORAGE TEMPERATURE -40 to 85°C (-40 to 185℉)
