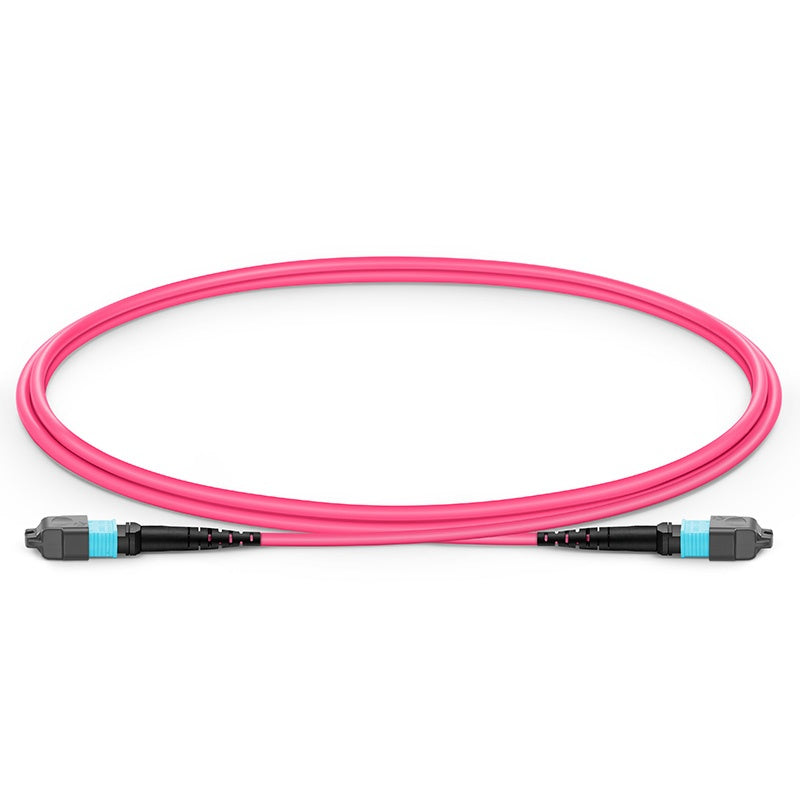

16 Fibers MTP trunk cable is designed for 400G QSFP-DD SR8 optics direct connection and supporting 400G transmission for Hyperscale Data Center. With US Conec MTP connectors and Corning ClearCurve fiber, it is optimized for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
| Connector A | US Conec MTP Female (Pinless) |
|---|---|
| Fiber Mode | OM4 50/125μm |
| 400G Ethernet Distance |
100m at 850nm |
| Polish Type |
APC to APC |
| Insertion Loss |
0.35dB Max (0.15dB Typ.) |
| Attenuation at 850nm | ≤2.3dB/km |
| Cable Diameter | 3.0mm |
| Installation Tensile Load | 66N |
| Operating Temperature | -10 to +70°C (14 to 158℉) |
| Connector B | US Conec MTP Female (Pinless) |
|---|---|
| Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve® |
| Minimum Bend Radius | 7.5mm |
| Return Loss | ≥20dB |
|
|
| Attenuation at 1300nm | ≤0.6dB/km |
|---|---|
| Cable Jacket | Plenum (OFNP) |
| TENSILE STRENGTH (LONG/SHORT TERM) | 80/240N |
| STORAGE TEMPERATURE | -40 to 85°C (-40 to 185℉) |
