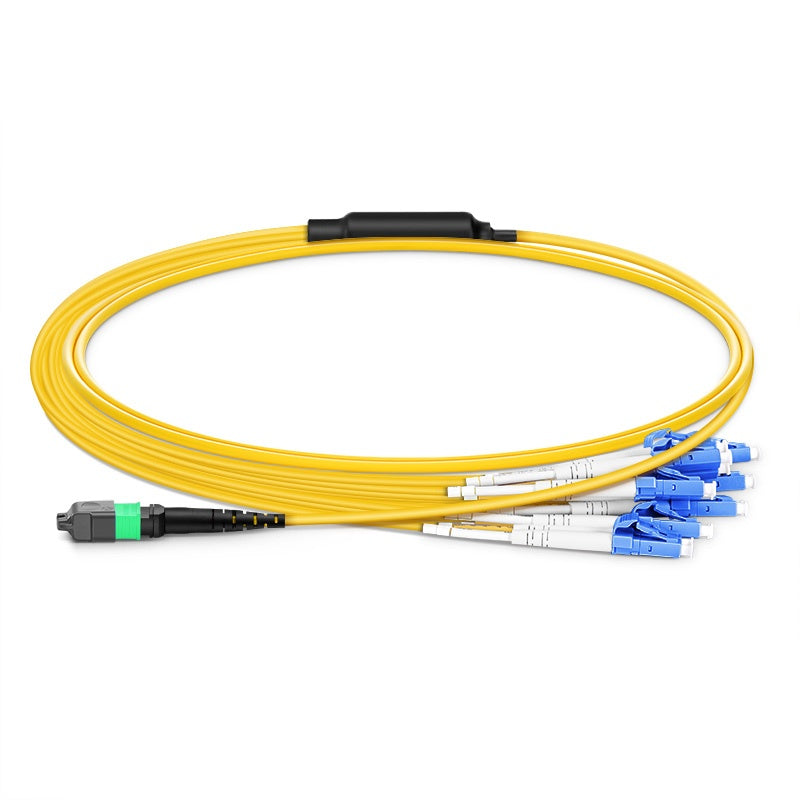

1m (3ft) MTP-16 APC (Female) to 8 LC UPC Duplex OS2 Single Mode Standard IL Breakout Cable, 16 Fibers, Plenum (OFNP), Yellow, for 800G Network Connection

Length:: 1m(3ft)
Sale price$104.30


MTP APC Female to LC UPC Duplex OS2 Single Mode Breakout Cable

MTP Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra fiber, it is optimized for 800G OSFP XDR8 to 100G QSFP28 FR, 800G QSFP-DD/OSFP DR8 to 100G QSFP28 DR optics direct connection and high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.


Connector A US Conec MTP® APC Female (Pinless)
Fiber Mode OS2 SMF 9/125μm
Glass Fiber Corning SMF-28® Ultra
MTP Connector IL 0.75dB Max (0.35dB Typ.)
MTP Connector RL ≥60dB
Attenuation at 1310nm ≤0.32dB/km
Cable Jacket Plenum (OFNP)
Jacket OD 3.0mm


Installation Tensile Load 66N
Operating Temperature -10 to +70°C (14 to 158℉)
Connector B LC UPC Duplex
Wavelength 1310/1550nm
Fiber Grade G.657.A1 (Compatible with G.652.D)
LC Connector IL
LC Connector RL ≥50dB
Attenuation at 1550nm ≤0.18dB/km
Fiber Count 16 Fibers
Fan-Out Diameter
Storage Temperature -40 to +85°C (-40 to 185℉)
