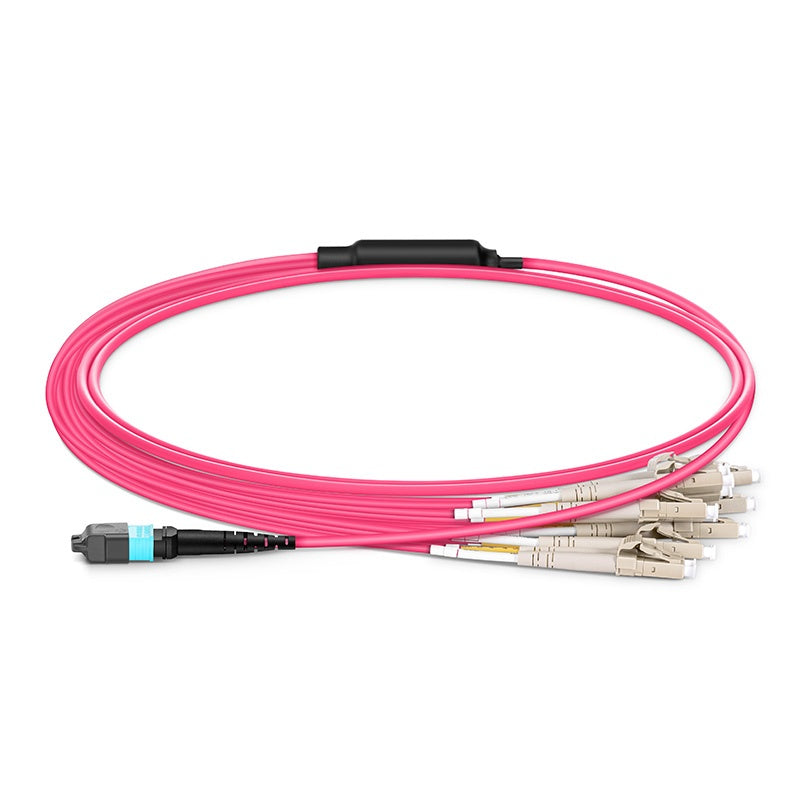

1m (3ft) MTP-16 APC (Female) to 8 LC UPC Duplex OM4 Multimode Elite Breakout Cable, 16 Fibers, Plenum (OFNP), Magenta


Length:: 1m(3ft)
Price:
Sale price$76.30

Description

MTP APC Female to LC UPC Duplex OM4 Multimode Breakout Cable

MTP breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning Clearcurve fiber, it is optimized for 400G QSFP-DD SR8 to 50G SR optics direct connection and high-density data center applications.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

SPECIFICATION

Connector A US Conec MTP® APC Female (Pinless)
Fiber Mode OM4 50/125μm
40/100G Ethernet Distance
100m at 850nm
Glass Fiber Corning ClearCurve®
MTP Connector IL ≤0.35dB Max (0.15dB Typ.)
MTP Connector RL ≥20dB
Attenuation at 850nm ≤2.3dB/km
Cable Jacket Plenum (OFNP)
Jacket OD 3.0mm



Installation Tensile Load 66N
Operating Temperature -10°C to +70°C
Connector B LC UPC Duplex
Wavelength 850/1300nm
LC Connector IL
≤0.2dB
LC Connector RL ≥30dB
Attenuation at 1300nm ≤0.6dB/km
Fiber Count 16 Fibers
Fan-Out Diameter
2.0mm
Tensile Strength (Long/Short Term)00 80/240N
Storage Temperature -40°C to +85°C
