MTP® trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP® connectors and Corning SMF-28® ultra optical fiber, it is optimized for 10G/40G/100G high-density data center applications.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
Description

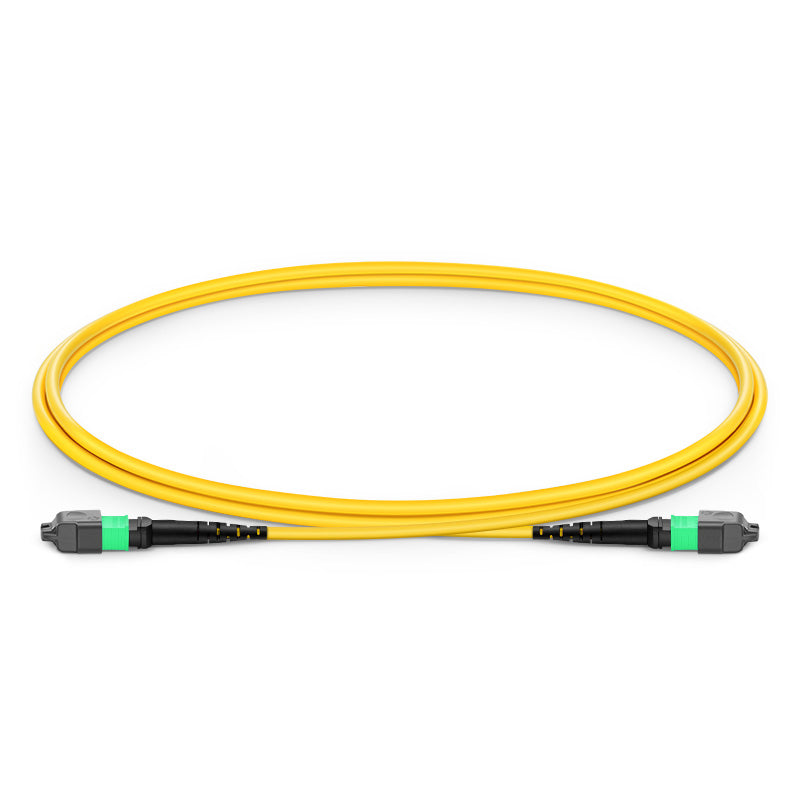

MTP Male to MTP Female OS2 9/125 Single Mode Trunk Cable
SPECIFICATION
| Connector A | US Conec MTP® Male (Pin) |
|---|---|
| Fiber Mode | OS2 9/125μm |
| Glass Fiber | Corning SMF-28® Ultra |
| Polish Type |
APC to APC |
| Insertion Loss |
0.35dB Max (0.15dB Typ.) |
| Attenuation at 1310nm | ≤0.32dB/km |
| Jacket OD | 3.0mm |
| Installation Tensile Load | 66N |
| Operating Temperature | -10 to +70°C (14 to 158℉) |
| Connector B | US Conec MTP Female (Pinless) |
|---|---|
| Wavelength | 1310/1550nm |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Minimum Bend Radius | 10 mm |
| Return Loss | ≥60dB |
|
|
| Attenuation at 1550nm | ≤0.18dB/km |
|---|---|
| Cable Jacket | Plenum (OFNP) |
| TENSILE STRENGTH (LONG/SHORT TERM) | 80/240N |
| STORAGE TEMPERATURE | -40 to 85°C (-40 to 185℉) |
