Description

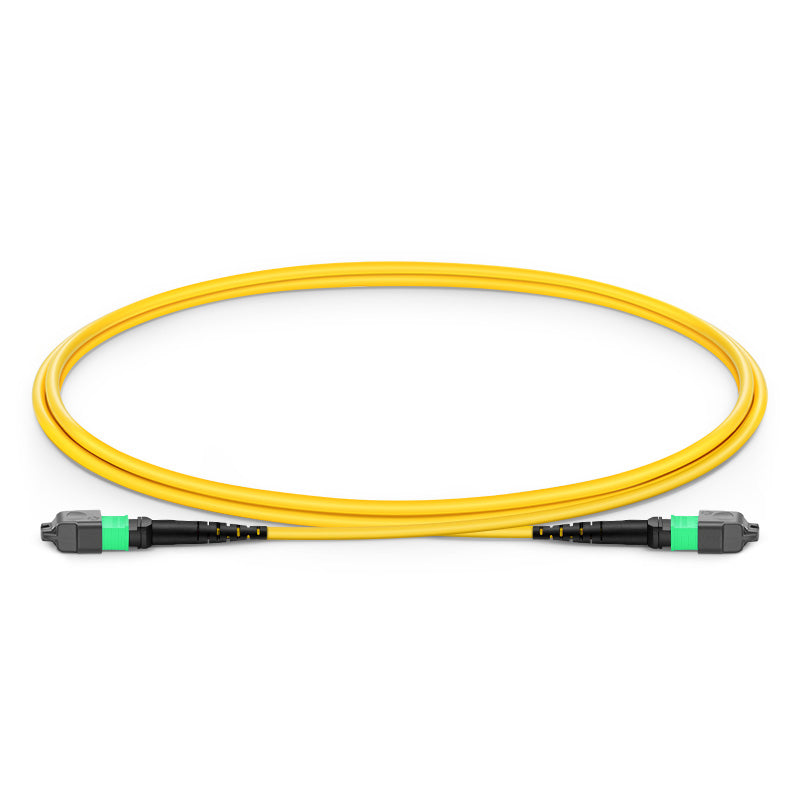

MTP-12 to MTP-12 APC OS2 9/125 Single Mode Trunk Cable,Type B
MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. Due to the MTP-12 also supporting MTP-8 fiber systems, it is also ideal for 8-fiber parallel single mode optical transceivers applications, such as 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4 and 400G QSFP-DD DR4/XDR4 optics direct connection.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
SPECIFICATION
| Connector A sIDE | US Conec MTP Female/Male Optional |
|---|---|
| Fiber Mode | OS2 9/125μm SM |
| Glass Fiber | Corning ClearCurve® |
| Polish Type | APC |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Attenuation at 1310nm | ≤0.32dB/km |
| Jacket OD | 3.0mm |
| Installation Tensile Load | 66N |
| Operating Temperature | -10 to 70°C (14 to 158℉) |
|---|---|
| Connector B | US Conec MTP Female/Male Optional |
| Wavelength | 1310/1550nm |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Minimum Bend Radius |
10mm |
| Return Loss | ≥60dB |
|
|
| Attenuation at 1550nm | ≤0.18dB/km |
|---|---|
| Cable Jacket | OFNP/LSZH |
| Tensile Strength (Long/Short Term) |
80/240N |
| Storage Temperature | -40 to 85°C (-40 to 185℉) |
