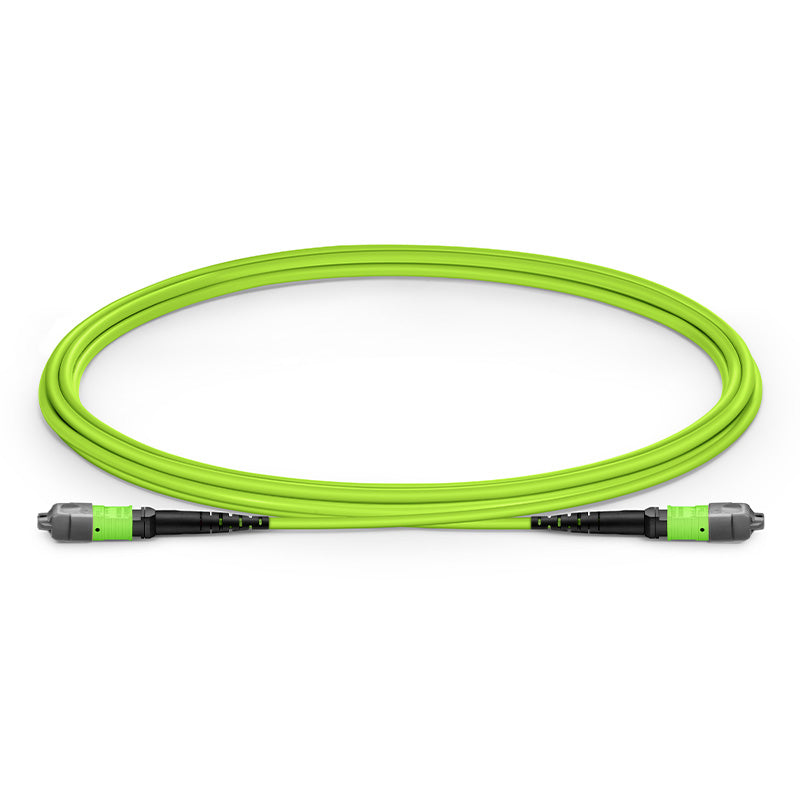

1m (3ft) MTP-12 (Female) to MTP-12 (Female) OM5 Multimode Elite Trunk Cable, 12 Fibers, Type B, Plenum (OFNP), Lime Green

Length:: 1m(3ft)
Sale price$51.10


MTP Female to MTP Female OM5 Multimode Trunk Cable

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

OM5 fibers are 100% standards compliant meeting all OM3 and OM4 specifications, with an additional requirement for Differential Mode Delay (DMD) that compensates for modal and chromatic dispersion. And they include additional bandwidth characterization at 953 nm to support extended distances when using SWDM. OM5 fibers apply to data centers which require quick infrastructure deployment with extended reach that want to maintain bandwidth throughout the infrastructure.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.


Connector Type
US Conec MTP®-MTP Female (Pinless)
Fiber Mode OM5 50/125μm
40G Ethernet Distance 440m at 850nm
RoHS Compliancy Status Compliant
Insertion Loss
0.35dB Max (0.15dB Typ.)
Effectivemodal Bandwidth (at 850nm) ≥4700mHz·km
Jacket OD 3.0mm
Installation Tensile Load 66N
Operating Temperature -10 to +70°C (14 to 158℉)


Polish Type UPC to UPC
Wavelength 850/1300nm
100G Ethernet Distance 150m at 850nm
Minimum Bend Radius 7.5mm
Return Loss ≥20dB
Effectivemodal Bandwidth (at 953nm) ≥2470mHz·km
Cable Jacket Plenum (OFNP)
STORAGE TEMPERATURE -40 to 85°C (-40 to 185℉)
