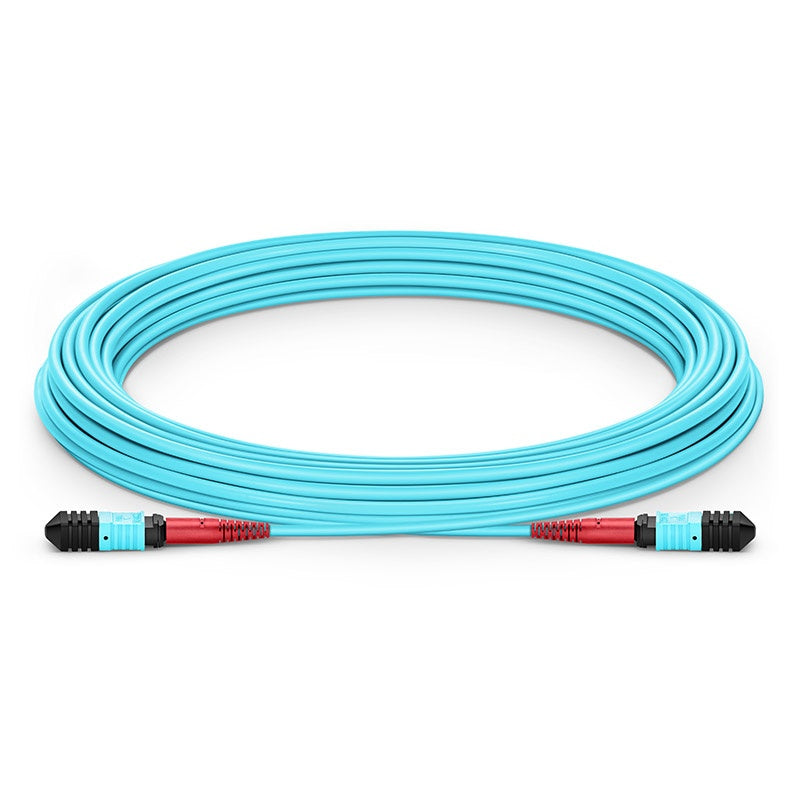

1m (3ft) MPO-24 (Female) to MPO-24 (Female) OM3 Multimode Elite Trunk Cable, 24 Fibers, Type C, Plenum (OFNP), Aqua


Price:
Sale price$49.00

Description

MPO Female to MPO Female OM3 Multimode Trunk Cable

MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers where need space saving and reduce cable management troubles. In addition, with Senko MPO Plus Connector and Corning ClearCurve Fiber, the high performance of connection is assured.

Please note: MPO Plus is a registered trademark of Senko Advanced Components. Senko MPO Plus connectors are fully compliant with the MPO standards, which are enhanced in the areas of mechanical durability, product features and most importantly the optical performance of the MT ferrule itself.

SPECIFICATION

Connectors Senko MPO Plus® Female (Pinless)
Fiber Mode OM3 50/125μm
MPO Connector IL 0.35dB Max (0.15dB Typ.)
Cable Jacket Plenum (OFNP)
Tensile Strength (Long/Short Term) 80N/240N
Operating Temperature -10 to +70°C (14 to 158℉)
Fiber Count 24 Fibers
Wavelength 850/1300nm
MPO Connector RL
≥20dB
Jacket OD 3.0mm
Installation Tensile Load 66N
Storage Temperature -40 to +85°C (-40 to 185℉)
