Description

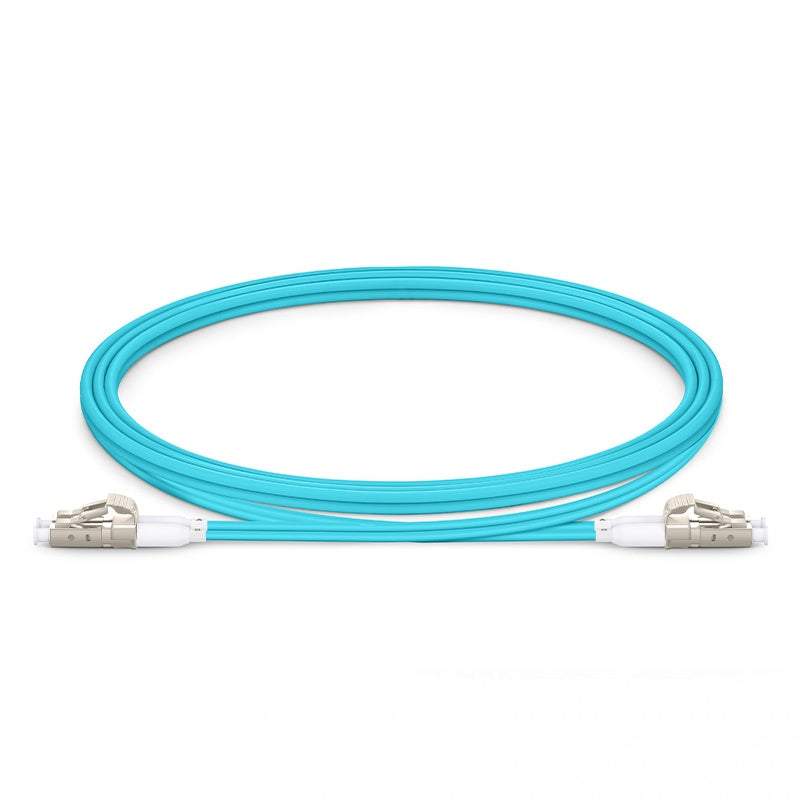

High Quality and Cost-effective 50/125μm OM3 Multimode LC Short Boot Fiber Optic Cable
The short boot structure is particularly for high density applications with tight space requirements. When used with bend insensitive fiber, the attenuation during bending or twisting can be reduced and this will make the installation and maintenance of the fiber optic cables more efficient. Therefore, it can be used in central offices, passive optical networks (PON), FTTx, data centers, and any places fiber patch cables are needed.
This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
SPECIFICATION
| Connector Type | LC UPC to SC UPC |
|---|---|
| Boot Type | 12mm Short Boot |
| Fiber Mode | OM3 50/125μm |
| Wavelength | 850/1300nm |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥30dB |
|
Min. Bend Radius (Fiber Core) |
7.5mm |
|
Min. Bend Radius (Fiber Cable) |
20/10D (Dynamic/Static) |
| Attenuation at 850nm | 3.0dB/km |
| Attenuation at 1300nm | 1.0dB/km |
|---|---|
| Fiber Count | Duplex |
| Cable Diameter | 2.0mm |
| Cable Jacket | PVC |
| Polarity | A (Tx) to B (Rx) |
|
Tensile Strength (Long Term/Short Term) |
90N/150N |
| Operating Temperature | -20~70°C |
| Storage Temperature | -40~80°C |
| 10G Ethernet Distance | 300m at 850nm |
