Description

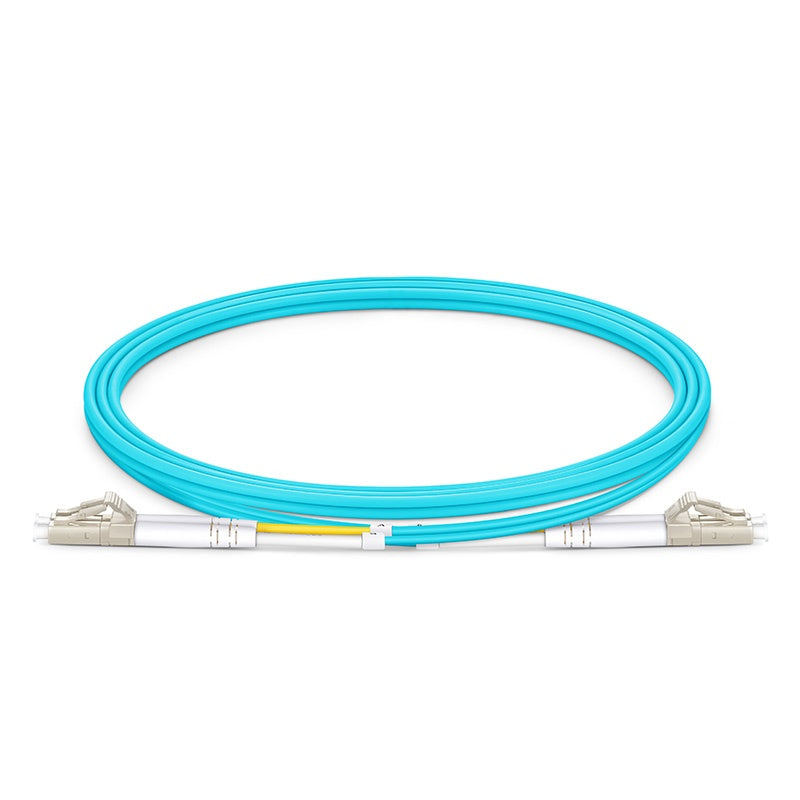

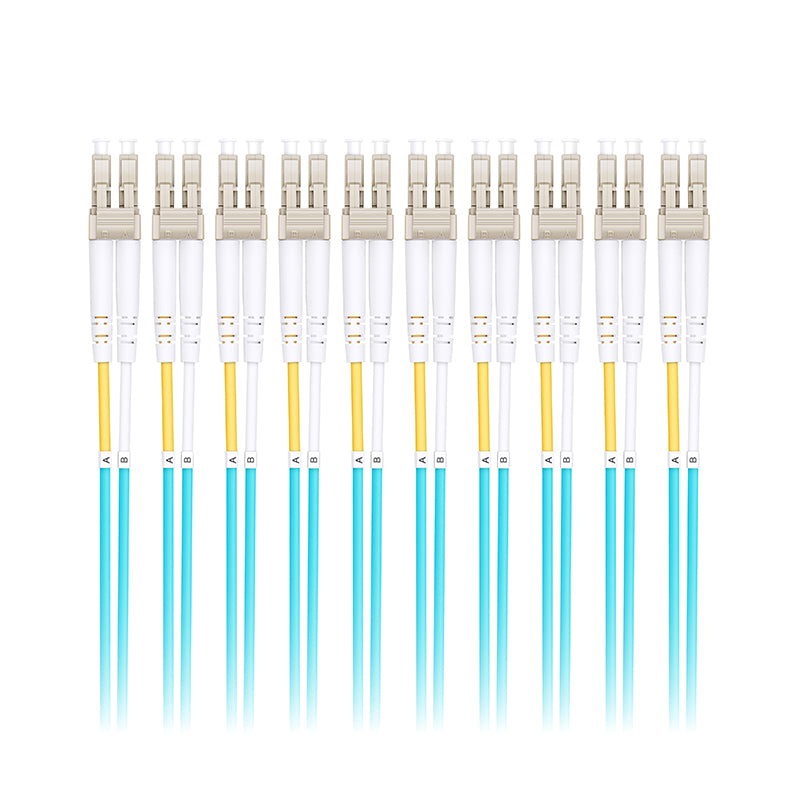

1m (3ft) LC UPC to LC UPC Duplex OM3 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable, 10 PCS/Pack
The 50/125μm OM3 multimode bend insensitive fiber optic cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, etc. and interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
SPECIFICATION
| Connector Type | LC UPC to LC UPC |
|---|---|
| Fiber Grade | Bend Insensitive |
| Fiber Mode | OM3 50/125μm |
| Wavelength | 850/1300nm |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥30dB |
|
Min. Bend Radius (Fiber Core) |
7.5mm |
|
Min. Bend Radius (Fiber Cable) |
20/10D (Dynamic/Static) |
| Attenuation at 850nm | 3.0dB/km |
| Attenuation at 1300nm | 1.0dB/km |
|---|---|
| Fiber Count | Duplex |
| Cable Diameter | 2.0mm |
| Cable Jacket | PVC |
| Polarity | A (Tx) to B (Rx) |
| Operating/Storage Temperature | Operating |
| Storage Temperature | -40 to 80℃ (-40 to 176℉) |
| 10G Ethernet Distance | 300m at 850nm |
TESTING
