Description

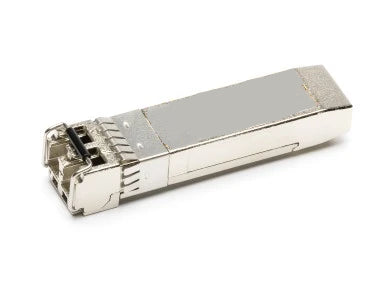

1G SFP SX INDUSTRIAL550 m, λ850 nm, DDM, LC-Duplex, Multimode
- Universal SFP Transceiver
- Use 3CBOX to configure to almost any vendor
- For 1000BASE-SX Ethernet links
- Supported Data Rates: 1.05 Gbit/s - 1.25 Gbit/s
- LC-Duplex Connector
- Operating Temperature from -40°C to 85°C, Digital Diagnocstic Monitoring (DDM)
SPECIFICATION
| FORM FACTOR | SFP |
|---|---|
| CONNECTOR / POLISH | LC-Duplex PC |
| INTERFACE | Multimode |
| TYPE | SX |
| DISTANCE | 550 m |
| TEMPERATURE RANGE | -40°C - 85°C |
| BANDWIDTH | 1.05 Gbit/s - 1.25 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|
POWER CONSUMPTION CDR |
1W none |
| SGMII | No |
|---|---|
| INBUILT FEC | No |
| POWERBUDGET (DB) | 7.5 dB |
| TRANSMIT MIN/MAX PER LANE | -9.5 dBm / -3 dBm |
| RECEIVER MIN/MAX PER LANE | -17 dBm / -3 dBm (overload) |
| WAVELENGTH TX (TYPICAL) | 850 nm |
| WAVELENGTH TX (RANGE) | 830 - 860 nm |
|
WAVELENGTH RX (TYPICAL) WAVELENGTH RX (RANGE) |
850 nm 760 - 860 nm |
| LASER | VCSEL |
| RECEIVER TYPE | PIN |
|---|---|
| MODULATION | NRZ |
| SUPPORTED PROTOCOLS | 1G Fibre Channel, Gigabit Ethernet |
