Description

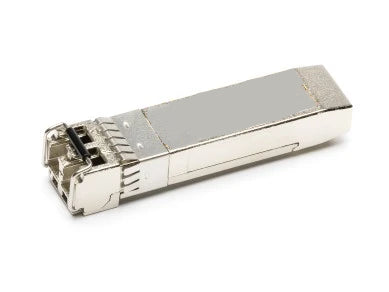

1G SFP LX 10 km, λ1310 nm, DDM, LC-Duplex, Singlemode
- Universal SFP Transceiver
- Use 3CBOX to configure to almost any vendor
- For 1000BASE-LX Ethernet links
- Supported Data Rates: 1.05 Gbit/s - 1.25 Gbit/s
- Up to 12plex Connector
- Digital Diagnocstic Monitoring (DDM)
SPECIFICATION
| FORM FACTOR | SFP |
|---|---|
| CONNECTOR / POLISH | LC-Duplex PC |
| INTERFACE | Singlemode |
| TYPE | LX |
| DISTANCE | 20km |
| TEMPERATURE RANGE | 0°C - 70°C |
| BANDWIDTH | 1.05 Gbit/s - 1.25 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|
POWER CONSUMPTION CDR |
1W none |
| SGMII | No |
|---|---|
| INBUILT FEC | No |
| POWERBUDGET (DB) | 9 dB |
| TRANSMIT MIN/MAX PER LANE | -9 dBm / -3 dBm |
| RECEIVER MIN/MAX PER LANE | -18 dBm / -3 dBm (overload) |
| WAVELENGTH TX (TYPICAL) | 1310 nm |
| WAVELENGTH TX (RANGE) | |
|
WAVELENGTH RX (TYPICAL) WAVELENGTH RX (RANGE) |
|
| LASER | FP |
| RECEIVER TYPE | PIN |
|---|---|
| MODULATION | NRZ |
| TRANSMIT AND DISPERSION PENALTY | 1 dB |
| EXTINCTION RATIO | 9 dB |
| SUPPORTED PROTOCOLS | 1G Fibre Channel, Gigabit Ethernet |
TESTING
