Description

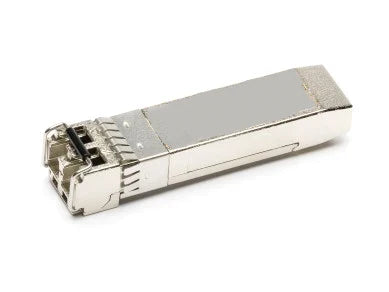

1G SFP BIDI LX40 km, TX1310 / RX1550 nm, DDM, LC/SC-Simplex, Singlemode
- Universal SFP BiDi Transceiver
- Use 3CBOX to configure to almost any vendor
- Double your bandwith by using only one fiber for transmit and receive
- For 1000BASE-LX Ethernet links
- Supported Data Rates: 125 Mbit/s - 1.25 Gbit/s
- LC/SC-Simplex Connector
- Digital Diagnocstic Monitoring (DDM)
SPECIFICATION
FORM FACTOR | SFP |
---|---|
CONNECTOR / POLISH | LC/SC-Simplex UPC |
INTERFACE | Singlemode BiDi |
TYPE | BiDi LX |
DISTANCE | 10km |
TEMPERATURE RANGE | 0°C - 70°C |
BANDWIDTH | 1.05 Gbit/s - 1.25 Gbit/s |
DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
POWER CONSUMPTION CDR |
1W none |
SGMII | No |
---|---|
INBUILT FEC | No |
POWERBUDGET (DB) | 12 dB |
TRANSMIT MIN/MAX PER LANE | --9~-3dBm |
RECEIVER MIN/MAX PER LANE | < -20dBm |
WAVELENGTH TX (TYPICAL) | 1310 nm |
WAVELENGTH TX (RANGE) | 1260 - 1600nm |
WAVELENGTH RX (TYPICAL) WAVELENGTH RX (RANGE) |
1550 nm 1520 - 1580 nm |
LASER | DFB |
RECEIVER TYPE | PIN |
---|---|
MODULATION | NRZ |
EXTINCTION RATIO | 9 dB |
SUPPORTED PROTOCOLS | 1G Fibre Channel, Gigabit Ethernet |
TESTING
