Description

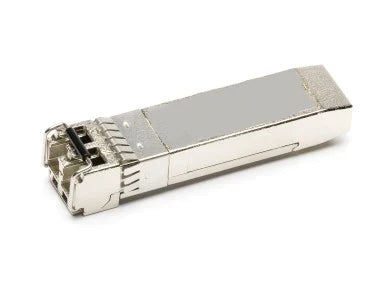

1G SFP BIDI EX40 km, TX1310 / RX1490 nm, DDM, LC/SC-Simplex, Singlemode
- Universal SFP BiDi Transceiver
- Use 3CBOX to configure to almost any vendor
- Double your bandwith by using only one fiber for transmit and receive
- For 1000BASE-EX Ethernet links
- Supported Data Rates: 125 Mbit/s - 1.25 Gbit/s
- LC/SC-Simplex Connector
- Digital Diagnocstic Monitoring (DDM)
SPECIFICATION
| FORM FACTOR | SFP |
|---|---|
| CONNECTOR / POLISH | LC/SC-Simplex UPC |
| INTERFACE | Singlemode BiDi |
| TYPE | BiDi EX |
| DISTANCE | 40km |
| TEMPERATURE RANGE | 0°C - 70°C |
| BANDWIDTH | 1.05 Gbit/s - 1.25 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|
POWER CONSUMPTION CDR |
1W none |
| SGMII | No |
|---|---|
| INBUILT FEC | No |
| POWERBUDGET (DB) | 18 dB |
| TRANSMIT MIN/MAX PER LANE | -5~0 dBm |
| RECEIVER MIN/MAX PER LANE | < -23dBm |
| WAVELENGTH TX (TYPICAL) | 1310 nm |
| WAVELENGTH TX (RANGE) | 1260 - 1600nm |
|
WAVELENGTH RX (TYPICAL) WAVELENGTH RX (RANGE) |
1490 nm |
| LASER | DFB |
| RECEIVER TYPE | PIN |
|---|---|
| MODULATION | NRZ |
| EXTINCTION RATIO | 9 dB |
| SUPPORTED PROTOCOLS | 1G Fibre Channel, Gigabit Ethernet |
