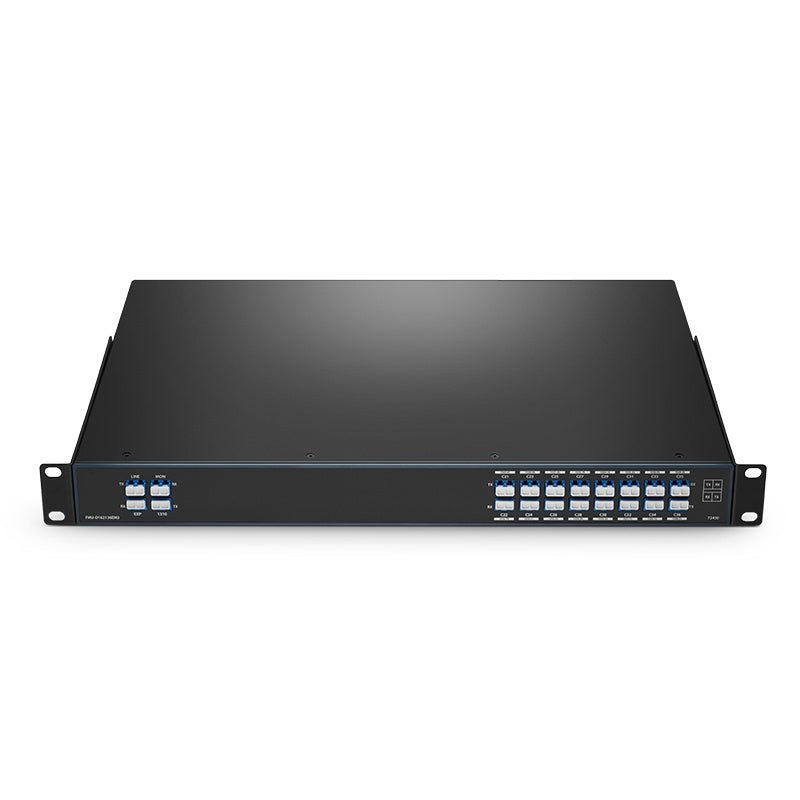

16 Channels DWDM Mux Demux, 100GHz C21-C36, with Monitor, Expansion and 1310nm Port, 4.4dB Typical IL, LC/UPC, Dual Fiber, 1U Rack Mount
The 16CH Mux Demux is a high-density, low loss, and suitable for long-haul transmission passive DWDM device based on TFF (Thin Film Filter). This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T G.694.1 100GHz grid, it maximizes the capacity of the C-band range.
In conjunction with the 3C transponders and amplifiers, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.
SPECIFICATION
| Wavelength | 16 Channels C21-C36 |
|---|---|
| 1310nm Port Passband | 1260nm~1360nm |
| Channel Passband | ±0.11nm |
| Insertion Loss | ≤4.9dB, 4.4dB Typical |
| Insertion Loss @ 1310 Port | ≤1.5dB |
|
Return Loss |
≥45dB |
| Polarization Mode Dispersion | ≤0.1ps |
| Channel Isolation |
Adjacent ≥30dB
Non-adjacent ≥ 40dB |
| Power Handling | ≤500mW |
| Channel Spacing | 100GHz (0.8nm) |
|---|---|
| Insertion Loss @ Exp | ≤5dB |
| Technology |
TFF (Thin Film Filter)
|
| Insertion Loss @ 1% Mon | ≤26dB |
| Passband Ripple | ≤0.5dB |
| Directivity | ≥45dB |
| Polarization Dependent Loss | ≤0.3dB |
| Temperature |
Operating -40 to 85°C (-40 to 185°F) Storage -40 to 85°C (-40 to 185°F) |
| Dimensions (HxWxD) | 1.73"x19"x10.28" (44x481.8x261.2mm) |
