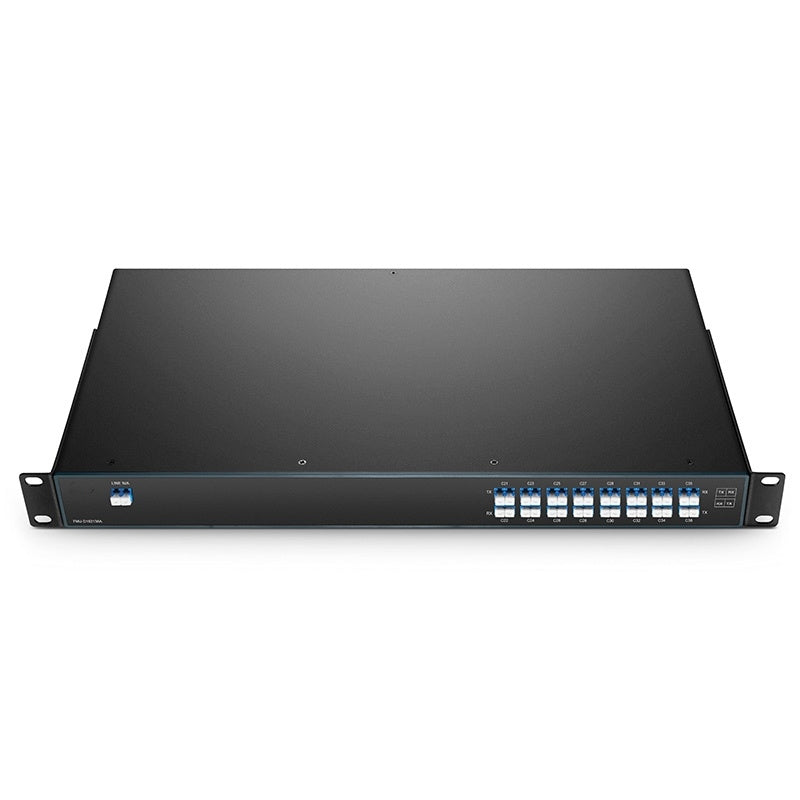

16 Channels DWDM Mux Demux, 100GHz C21-C36, 4.0dB Typical IL, LC/UPC, Single Fiber, Side-A, 1U Rack Mount
The 16CH Mux Demux is a high-density, low loss, and suitable for long-haul transmission passive DWDM device based on AAWG (Gaussian). This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T G.694.1 100GHz grid, it maximizes the capacity of the C-band range.
In conjunction with the 3C transponders and amplifiers, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.
SPECIFICATION
| Wavelength | 16 Channels RX-C21~C36, TX-C45~C60 |
|---|---|
| Channel Passband | ± 0.11nm |
| Passband Ripple | ≤ 1.5dB |
| Return Loss | ≥ 40dB |
| Polarization Dependent Loss | ≤ 0.7dB |
|
Channel Isolation |
≥45dB |
| Polarization Mode Dispersion |
Adjacent ≥ 25dB Non-adjacent ≥ 29dB |
| Power Handling |
≤ 300mW
|
| Channel Spacing | 100GHz (0.8nm) |
|---|---|
| Insertion Loss | ≤ 4.8dB, 4.0dB Typical |
| Technology |
AAWG (Gaussian)
|
| Directivity | ≥ 40dB |
| Polarization Mode Dispersion | ≤0.5dB |
| Temperature |
Operating -5 to 65°C (23 to 149°F) Storage -40 to 85°C (-40 to 185°F) |
| Dimensions (HxWxD) | 1.73"x19"x10.28" (44x481.8x261.2mm) |
