Description

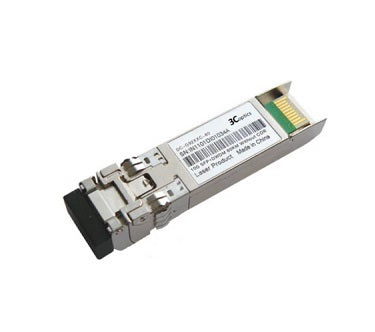

10G SFP+ TUNABLE DWDM ER WITH DUAL CDR40 km, 96 Channels, 50GHz Grid, C-Band, LC-Duplex, Singlemode
- Universal SFP+ Transceiver
- Use 3CBOX to configure to almost any vendor
- For 10GBASE-ER Ethernet links
- Set channels using your 3CBOX
- Reduce spare part stock for your DWDM network
- Integrated Clock-Data-Recovery (CDR)
- Supported Data Rates: 9.95 Gbit/s - 11.3 Gbit/s
- Up to 40 km via Singlemode OS2
- LC-Duplex Connector
SPECIFICATION
| FORM FACTOR | SFP+ |
|---|---|
| CONNECTOR / POLISH | LC-Duplex PC |
| INTERFACE | Singlemode DWDM 50GHz |
| TYPE | ER |
| DISTANCE | 40KM |
| TEMPERATURE RANGE | 0°C - 70°C |
| BANDWIDTH | 9.95 Gbit/s - 11.3 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|---|---|
| POWER CONSUMPTION | 2 W |
| CDR | TX and RX |
| SGMII | No |
| INBUILT FEC | No |
| POWERBUDGET (DB) | 12 dB |
| TRANSMIT MIN/MAX PER LANE | -2 dBm / 3 dBm |
| RECEIVER MIN/MAX PER LANE | -14 dBm / 0 dBm (overload) |
| WAVELENGTH TX (TYPICAL) | tunable DWDM 50GHz |
| WAVELENGTH TX (RANGE) | 1529.16 - 1567.13 nm |
|---|---|
| WAVELENGTH RX (RANGE) | 1525 - 1575 nm |
| LASER | ILMZ |
| RECEIVER TYPE | PIN |
| MODULATION | NRZ |
| DISPERSION PENALTY | 3 dB |
| DISPERSION TOLERANCE | -700 ps/nm to 700 ps/nm |
| EXTINCTION RATIO | 9 dB |
| SUPPORTED PROTOCOLS | 10G Ethernet |
