Description

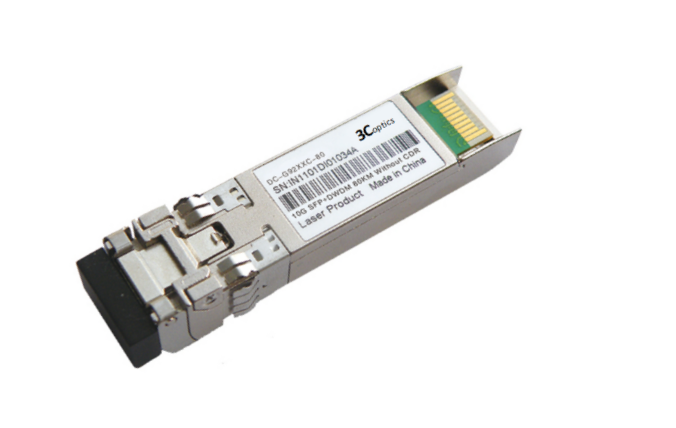

10G SFP+ ER INDUSTRIAL40 km, λ1550 nm, LC-Duplex, Singlemode
- Universal SFP+ Transceiver
- Use 3CBOX to configure to almost any vendor
- For 10GBASE-ER Ethernet links
- Supported Data Rates: 600 Mbit/s - 11.3 Gbit/s
- Up to 40 km via Singlemode OS2
- LC-Duplex Connector
- Operating Temperature from -40°C to 85°C
SPECIFICATION
| FORM FACTOR | SFP+ |
|---|---|
| CONNECTOR / POLISH | LC-Duplex PC |
| INTERFACE | Singlemode |
| TYPE | ER |
| DISTANCE | 40KM |
| TEMPERATURE RANGE | -40°C - 85°C |
| BANDWIDTH | 600 Mbit/s - 11.3 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|---|---|
| POWER CONSUMPTION | 1.5 W |
| CDR | none |
| SGMII | No |
| INBUILT FEC | No |
| POWERBUDGET (DB) | 11.1 dB |
| TRANSMIT MIN/MAX PER LANE | -4.7 dBm / 4 dBm |
| RECEIVER MIN/MAX PER LANE | -15.8 dBm / -1 dBm (overload) |
| WAVELENGTH TX (TYPICAL) | 1550 nm |
| WAVELENGTH TX (RANGE) | 1480 - 1600 nm |
|---|---|
| WAVELENGTH RX (TYPICAL) | 1550 nm |
| WAVELENGTH RX (RANGE) | 1260 - 1600 nm |
| LASER | EML |
| RECEIVER TYPE | PIN |
| MODULATION | NRZ |
| TRANSMIT AND DISPERSION PENALTY | 2 dB |
| EXTINCTION RATIO | 3.5dB |
| SUPPORTED PROTOCOLS | 10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI |
