Description

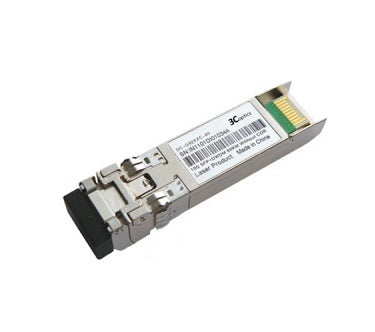

10G SFP+ CWDM ZR INDUSTRIAL~70 km / 24 dB, 1470 nm - 1610 nm, LC-Duplex
- Universal SFP+ Transceiver - CWDM
- Use 3CBOX to configure to almost any vendor
- CWDM for multiple applications over one duplex fiber
- For 10GBASE-ZR Ethernet links
- Supported Data Rates: 614 Mbit/s - 11.3 Gbit/s
- Powerbudget of 24 dB for up to 70 km using an OS2 ITU-T G.652 fiber
- Operating Temperature from -40°C to 85°C
SPECIFICATION
| FORM FACTOR | SFP+ |
|---|---|
| CONNECTOR / POLISH | LC-Duplex PC |
| INTERFACE | CWDM |
| TYPE | CWDM ZR |
| DISTANCE | 70KM |
| TEMPERATURE RANGE | -40°C - 85°C |
| BANDWIDTH | 614 Mbit/s - 11.3 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Internally Calibrated |
|---|---|
| POWER CONSUMPTION | 2 W |
| CDR | none |
| INBUILT FEC | No |
| POWERBUDGET (DB) | 24 dB |
| TRANSMIT MIN/MAX PER LANE | 0 dBm / 4 dBm |
| RECEIVER MIN/MAX PER LANE | -24 dBm / -7 dBm (overload) |
| LASER | EML |
| RECEIVER TYPE | APD |
| MODULATION | NRZ |
| TRANSMIT AND DISPERSION PENALTY | 3 dB |
| EXTINCTION RATIO | 9 dB |
| SUPPORTED PROTOCOLS | 10G Ethernet, 10G FC, 1G Fibre Channel, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI |
