Description

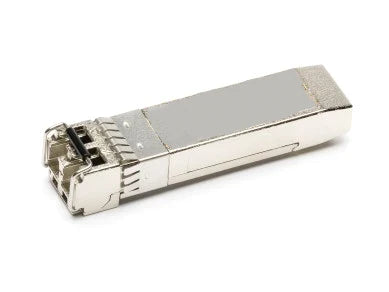

100M SFP LX SGMII10 km, λ1310 nm, DDM, LC-Duplex, Singlemode
- Universal SFP Transceiver
- Use 3CBOX to configure to almost any vendor
- For 100M - 800MBASE-LX Ethernet links
- Leverage SMGII to support Fast Ethernet on 1 Gigabit devices
- Supported Data Rates: 125 Mbit/s
- Up to 10 km via Singlemode OS2
- LC-Duplex Connector
- Digital Diagnocstic Monitoring (DDM)
SPECIFICATION
| FORM FACTOR | SFP |
|---|---|
| CONNECTOR / POLISH | LC-Duplex PC |
| INTERFACE | Singlemode |
| TYPE | LX |
| DISTANCE | 10km |
| TEMPERATURE RANGE | 0°C - 70°C |
| BANDWIDTH | 125 Mbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|
POWER CONSUMPTION CDR |
1.2 W none |
| SGMII | Yes |
|---|---|
| INBUILT FEC | No |
| POWERBUDGET (DB) | 15 dB |
| TRANSMIT MIN/MAX PER LANE | -15 dBm / -8 dBm |
| RECEIVER MIN/MAX PER LANE | -30 dBm / 0 dBm (overload) |
| WAVELENGTH TX (TYPICAL) | 1310 nm |
| WAVELENGTH TX (RANGE) | 1260 - 1360 nm |
|
WAVELENGTH RX (TYPICAL) WAVELENGTH RX (RANGE) |
1310 nm 1200 - 1600 nm |
| LASER | FP |
| RECEIVER TYPE | PIN |
|---|---|
| MODULATION | NRZ |
| EXTINCTION RATIO | 9 dB |
| SUPPORTED PROTOCOLS | Fast Ethernet |
