Description

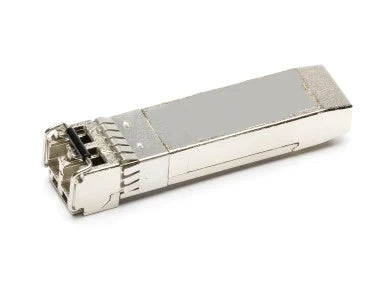

100M SFP FX INDUSTRIAL2 km, λ1310 nm, LC-Duplex, Multimode
- Universal SFP Transceiver
- Use 3CBOX to configure to almost any vendor
- For 100M - 800MBASE-FX Ethernet links
- Supported Data Rates: 125 Mbit/s
- Up to 2 km via Multimode OM3
- LC-Duplex Connector
- Operating Temperature from -40°C to 85°C
SPECIFICATION
| FORM FACTOR | SFP |
|---|---|
| CONNECTOR / POLISH | LC-Duplex PC |
| INTERFACE | Multimode |
| TYPE | FX |
| DISTANCE | 2 km |
| TEMPERATURE RANGE | -40°C - 85°C |
| BANDWIDTH | 125 Mbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, none |
|
POWER CONSUMPTION CDR |
1W none |
| SGMII | No |
|---|---|
| INBUILT FEC | No |
| POWERBUDGET (DB) | 10 dB |
| TRANSMIT MIN/MAX PER LANE | -20 dBm / -14 dBm |
| RECEIVER MIN/MAX PER LANE | -30 dBm / -8 dBm (overload) |
| WAVELENGTH TX (TYPICAL) | 1310 nm |
| WAVELENGTH TX (RANGE) | 1260 - 1360 nm |
|
WAVELENGTH RX (TYPICAL) WAVELENGTH RX (RANGE) |
1310 nm 1260 - 1600 nm |
| LASER | FP |
| RECEIVER TYPE | PIN |
|---|---|
| MODULATION | NRZ |
| TRANSMIT AND DISPERSION PENALTY | 1 dB |
| EXTINCTION RATIO | 9 dB |
| SUPPORTED PROTOCOLS | Fast Ethernet |
