Description

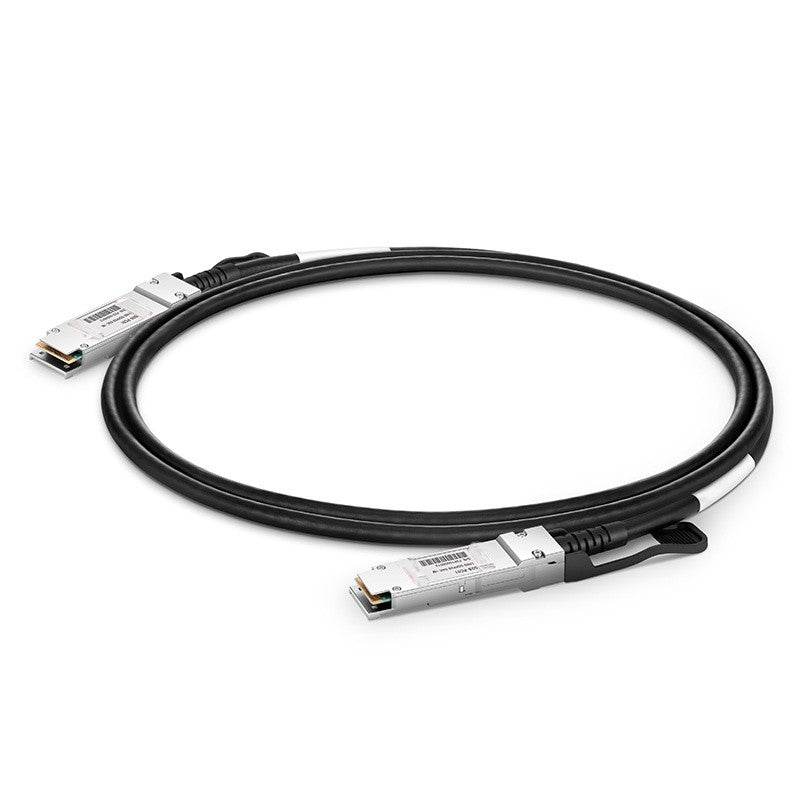

100G QSFP28 DACPassive Copper Cable, 0.5 - 5 m
- Universal Direct Attached Cable (DAC), 0.5 - 5 m
- Use 3CBOX to configure to almost any vendor
- QSFP28 to QSFP28
- Supports Datarates from 10.3 to 111.8 Gbit/s
-
Modules are permanently attached to each end
- Low power consumption < 0.06 W (less than 0.03 W per terminal)
-
Connect different host systems by configuring each side individuall
SPECIFICATION
| TYPE | DAC |
|---|---|
| FORM FACTOR | QSFP28 to QSFP28 |
| INTERFACE | Direct Attached Cable |
| CABLE TYPE | passive Twinax |
| TEMPERATURE RANGE | 0°C - 70°C |
| BANDWIDTH | 41.2 Gbit/s - 111.8 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | not implemented |
| CDR | none |
| MODULATION |
NRZ |
| SUPPORTED PROTOCOLS | 100G Ethernet, 40G Ethernet, OTU4 |
| POWER CONSUMPTION | 0.06 W (0.03 W + 0.03 W) |
