Description

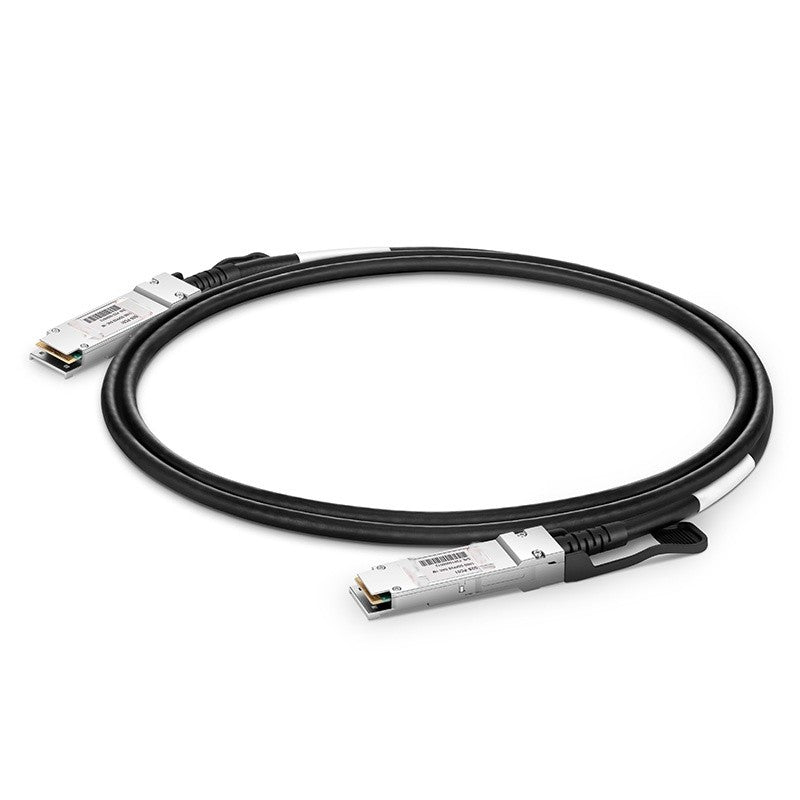

100G QSFP28 TO 4X SFP28 BREAKOUT DACPassive Copper Cable, 0.5 - 3 m
- Universal Direct Attached Cable (DAC), 0.5 - 3 m
- Use 3CBOX to configure to almost any vendor
- QSFP28 to SFP28
-
Supports 100G to 4x 25G Ethernet interoperability
- Supports Datarates from 25.78 to 111.8 Gbit/s
-
Modules are permanently attached to each end
- Low power consumption << 0.5 W (less than 0.1 W per terminal)
- Operating Temperature -40°C - 85°C
-
Connect different host systems by configuring each side individuall
SPECIFICATION
| TYPE | DAC Breakout |
|---|---|
| FORM FACTOR | QSFP28 to 4x SFP28 |
| INTERFACE | Direct Attached Cable |
| CABLE TYPE | passive Twinax |
| TEMPERATURE RANGE | -40°C - 85°C |
| BANDWIDTH | 103.12 Gbit/s - 111.8 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | not implemented |
| CDR | none |
| MODULATION |
NRZ |
| SUPPORTED PROTOCOLS | 25G Ethernet |
| POWER CONSUMPTION | 0.5 W (0.1 W + 4x 0.1 W) |
