Description

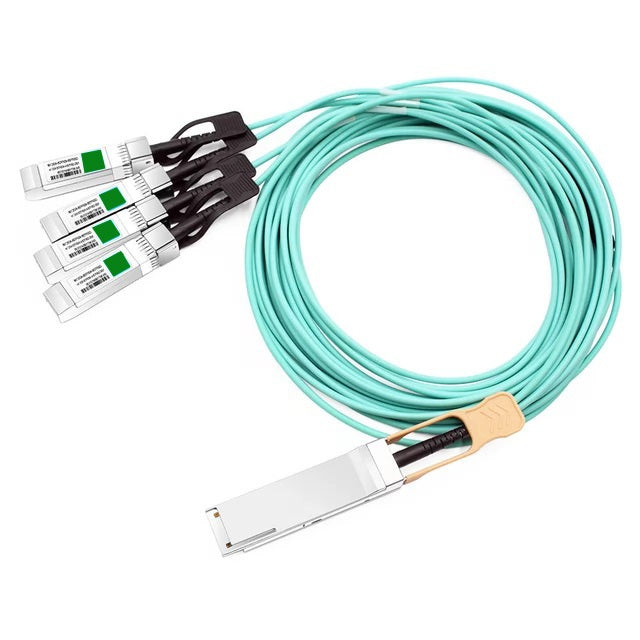

100G QSFP28 TO 4X SFP28 BREAKOUT AOC WITH CDR (TX / RX)Multimode Fiber, 1 - 100 m
- Universal Active Optical Cable (AOC) with CDR (TX / RX), 1 - 100 m
- Use 3CBOX to configure to almost any vendor
- QSFP28 to SFP28
-
Supports 100G to 4x 25G Ethernet interoperability
- Supports Datarates from 25.78 to 112.2 Gbit/s
- Modules are permanently attached to each end
-
Low power consumption < 7.5 W (less than 3.5 W per terminal)
- Easy cable routing thanks to small diameter (Ø 2 mm) and bend radius
-
Connect different host systems by configuring each side individually
SPECIFICATION
| TYPE | AOC Breakout |
|---|---|
| FORM FACTOR | QSFP28 to 4x SFP28 |
| INTERFACE | Active Optical Cable |
| CABLE TYPE | Optical Fiber |
| TEMPERATURE RANGE | 0°C - 70°C |
| BANDWIDTH | 103.12 Gbit/s - 112.2 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | not implemented |
| CDR | TX and RX |
| MODULATION |
NRZ |
| SUPPORTED PROTOCOLS | 25G Ethernet |
| POWER CONSUMPTION | 7.5 W (3.5 W + 4x 1 W) |
