Description

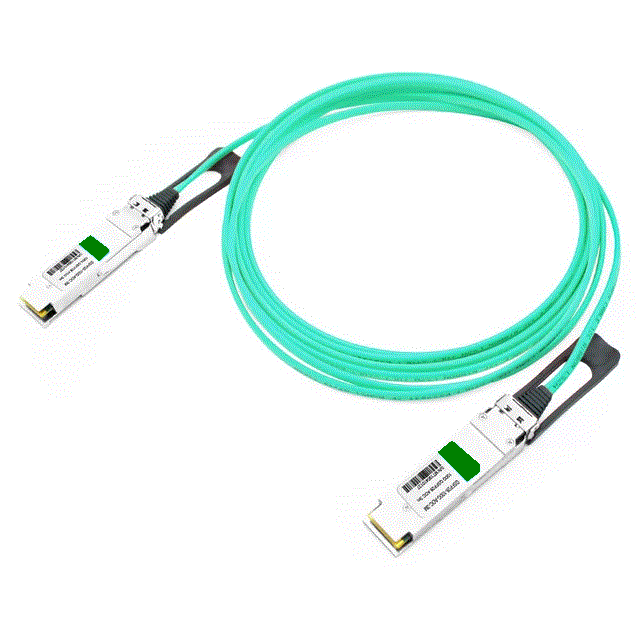

100G QSFP28 AOC WITH CDR (TX / RX)Multimode Fiber, 1 - 100 m
- Universal Active Optical Cable (AOC) with CDR (TX / RX), 1 - 100 m
- Use 3CBOX to configure to almost any vendor
- QSFP28 to QSFP28
- distances up to 3m can come with OM2+
- Supported Datarate 103.12 Gbit/s
- Modules are permanently attached to each end
-
Low power consumption < 7 W (less than 3.5 W per terminal)
- Easy cable routing thanks to small diameter (Ø 2 mm) and bend radius
-
Connect different host systems by configuring each side individually
SPECIFICATION
| TYPE | AOC |
|---|---|
| FORM FACTOR | QSFP28 to QSFP28 |
| INTERFACE | Active Optical Cable |
| CABLE TYPE | Optical Fiber |
| TEMPERATURE RANGE | 0°C - 70°C |
| BANDWIDTH | 103.12 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | implemented |
| CDR | TX and RX |
| MODULATION |
NRZ |
| SUPPORTED PROTOCOLS | 100G Ethernet |
| POWER CONSUMPTION | 7 W (3.5 W + 3.5 W) |
